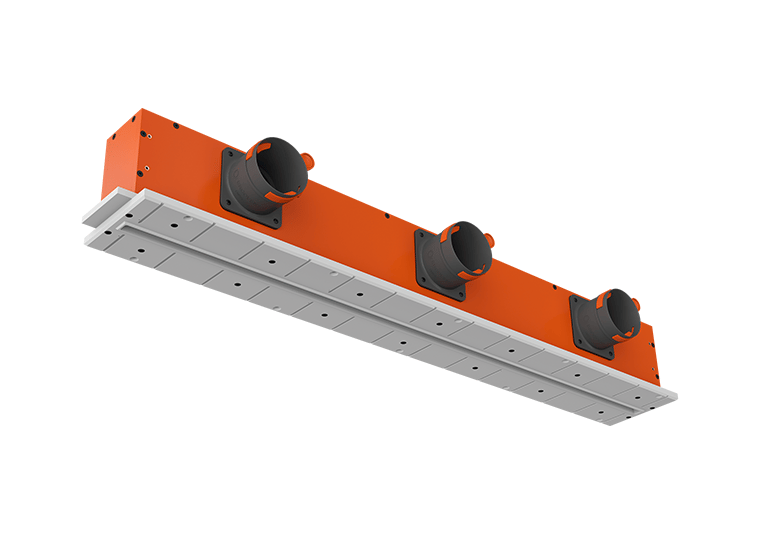

ERGOVENT LINEO
Linear Frameless Gypsum Diffuser
LINEO-1000 PROFILE 1 SLOT
Frameless linear slot diffuser that installs directly onto ceiling profiles, blending into drywall ceilings and walls with a discreet, paintable slit. Concrete attachment and leveling are not required.
Key Features:
Application: air supply and extraction
Slot length: 39.4 in (1000 mm), fixed length
Duct connection diameter: 2.95 in (75 mm)
Required installation space: 6.7 in (170 mm)
Max airflow: 47.09 - 70.63 CFM
Attaches directly to ceiling profiles; no concrete attachment needed
PVC connection box and diffuser base with powder-coated black grilles
Antistatic PP plastic connection fittings
Built-in airflow balancing damper, adjustable from the outside using the included gauge
Kit includes: diffuser with connection box and three 2.95 in (75 mm) duct connection fittings
ERGOVENT LINEO
Linear Frameless Gypsum Diffuser
LINEO-1000 PROFILE 1 SLOT
Frameless linear slot diffuser that installs directly onto ceiling profiles, blending into drywall ceilings and walls with a discreet, paintable slit. Concrete attachment and leveling are not required.
Key Features:
Application: air supply and extraction
Slot length: 39.4 in (1000 mm), fixed length
Duct connection diameter: 2.95 in (75 mm)
Required installation space: 6.7 in (170 mm)
Max airflow: 47.09 - 70.63 CFM
Attaches directly to ceiling profiles; no concrete attachment needed
PVC connection box and diffuser base with powder-coated black grilles
Antistatic PP plastic connection fittings
Built-in airflow balancing damper, adjustable from the outside using the included gauge
Kit includes: diffuser with connection box and three 2.95 in (75 mm) duct connection fittings
Key Benefits:
Single-person installation, no concrete anchoring or leveling required
Painted to match the ceiling in any color
The airflow damper is adjustable from the outside after installation
Knauf finishing technology recommended for crack-free results
Reinforcing with thin glass fabric prevents joint cracks
