ERGOVENT LINEO

Linear Frameless Gypsum Diffuser

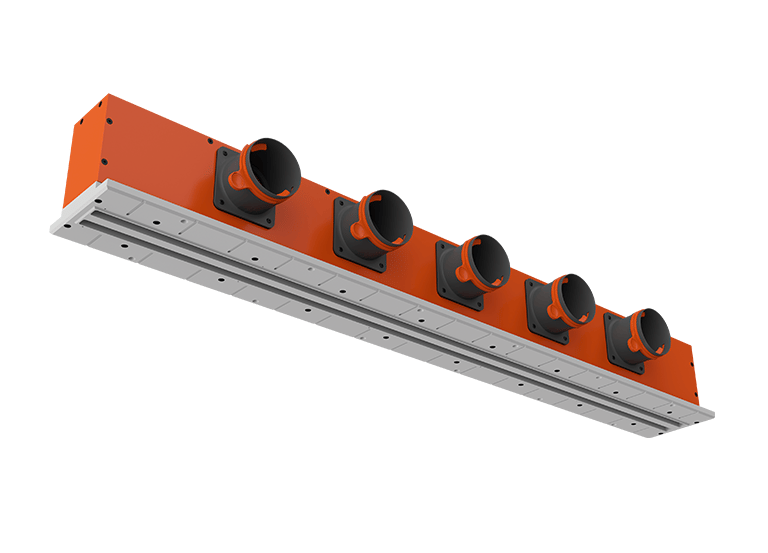

LINEO-1200 PROFILE - 2 Slot

Frameless linear slot diffuser that installs directly onto ceiling profiles, blending into drywall ceilings with a discreet, paintable slit. Available with a 47.24 in (1200 mm) slot length and a 2.95 in (75 mm) duct connection.

Technical Features:

• Application: air supply and extraction

• Slot length: 47.24 in (1200 mm), fixed length

• Duct connection diameter: 2.95 in (75 mm)

• Required installation space: 6.69 in (170 mm)

• Max airflow: 47.09 - 70.63 CFM

• Attaches directly to ceiling profiles; no concrete attachment needed

• PVC connection box and diffuser base with powder-coated black grilles

• Antistatic PP plastic connection fittings

• Built-in airflow balancing damper, adjustable from the outside using the included gauge

• Kit includes: diffuser with connection box and five 2.95 in (75 mm) duct connection fittings

Key Benefits:

• Single-person installation in minutes

• Painted to match the ceiling in any color

• The airflow damper is adjustable from the outside after installation

• No complex leveling or concrete attachment required

• Knauf finishing technology recommended for crack-free results

• Reinforcing with thin glass fabric prevents joint cracks
