ERGOVENT LINEO

Linear Frameless Gypsum Diffuser

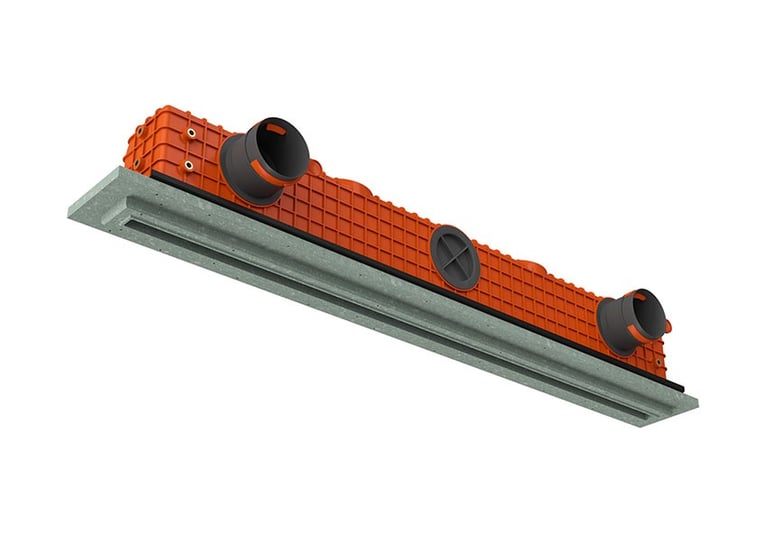

ERGOVENT LINEO PRO single-slot 75-90mm angled view showing orange plenum body with round duct inlets and gray gypsum frame
ERGOVENT LINEO PRO single-slot 75-90mm angled view showing orange plenum body with round duct inlets and gray gypsum frame
LINEO PRO SINGLE 1 SLOT

2.95" / 3.54"

Frameless linear slot diffuser designed for direct mounting onto gypsum ceiling profiles before drywall installation. Once plastered and painted, only a slim, clean slot remains visible.

Key Features:

  • Application: air supply and extraction

  • Fixed length: 39.4 in (1000 mm)

  • Compatible duct sizes: 2.95 in (75 mm) and 3.54 in (90 mm) flexible ducts

  • Required installation space: 6.3 in (160 mm)

  • Max airflow: 47.09 - 70.63 CFM

  • External adjustable balancing valve for airflow control without removing the unit

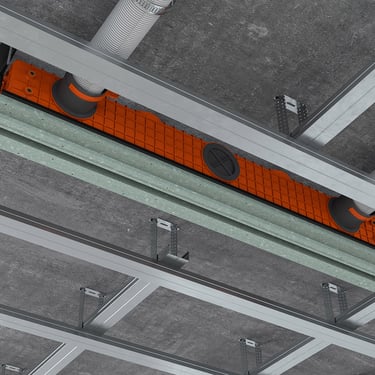

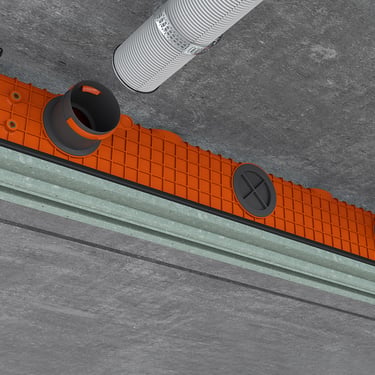

  • Designed for installation prior to gypsum framing on concrete ceilings

  • Securely packaged for safe transport

ERGOVENT LINEO

Linear Frameless Gypsum Diffuser

ERGOVENT LINEO PRO single-slot 75-90mm angled view showing orange plenum body with round duct inlets and gray gypsum frame
ERGOVENT LINEO PRO single-slot 75-90mm angled view showing orange plenum body with round duct inlets and gray gypsum frame
LINEO PRO SINGLE 1 SLOT

2.95" / 3.54"

Frameless linear slot diffuser designed for direct mounting onto gypsum ceiling profiles before drywall installation. Once plastered and painted, only a slim, clean slot remains visible.

Key Features:

  • Application: air supply and extraction

  • Fixed length: 39.4 in (1000 mm)

  • Compatible duct sizes: 2.95 in (75 mm) and 3.54 in (90 mm) flexible ducts

  • Required installation space: 6.3 in (160 mm)

  • Max airflow: 47.09 - 70.63 CFM

  • External adjustable balancing valve for airflow control without removing the unit

  • Designed for installation prior to gypsum framing on concrete ceilings

  • Securely packaged for safe transport

Key Benefits:

  • Disappears into the ceiling after plastering and painting, leaving only a slim slot

  • Suitable for vertical and horizontal installation

  • Made from antistatic, antibacterial plastic throughout

  • Bottom plate uses recycled material that bonds directly with drywall, preventing joint cracks
