ERGOVENT LINEO

Linear Frameless Gypsum Diffuser

LINEO-500 PROFILE

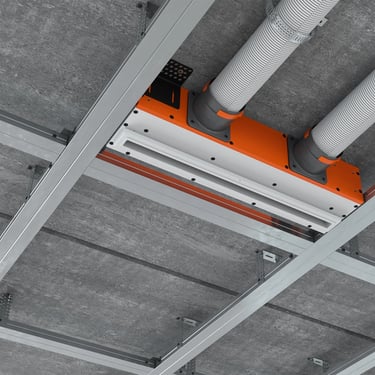

Frameless linear slot diffuser that installs into plasterboard ceilings and walls, blending in with a discreet, paintable slit. Only a minimal slot remains visible, becoming a deliberate design detail rather than a ventilation opening. Minimum installation space: 4.7 in (12 cm) required.

Key Features:

• Slot length: 19.7 in (500 mm)

• Duct connection diameter: 2.95 in (75 mm)

• PVC connection box and diffuser base with powder-coated black grilles

• Antistatic PP plastic connection fittings

• Built-in adjustable airflow balancing damper

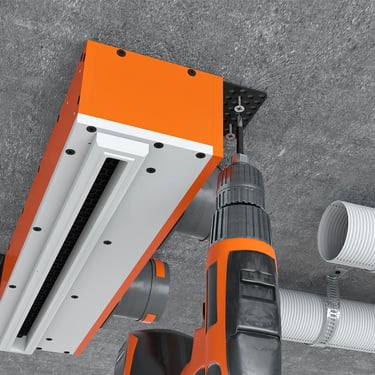

• Metal brackets for installation on concrete ceilings or wooden wall frames

• Duct adapters included for quick and secure duct connection

• Plastered and painted to match the ceiling or wall surface after installation

Key Benefits:

• Fast, simple installation with detailed instructions included

• Painted to match the ceiling in any color

• The airflow damper is adjustable from the outside after installation

• Suitable for concrete ceilings and wooden wall frames

• Knauf finishing technology recommended for crack-free results
