ERGOVENT LINEO

Linear Frameless Gypsum Diffuser

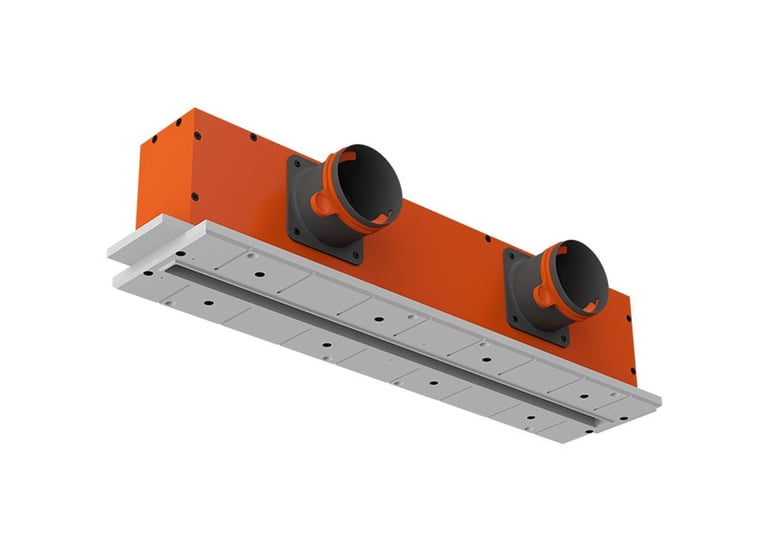

LINEO-600 PROFILE

Frameless linear slot diffuser that installs directly onto ceiling profiles, blending into plasterboard ceilings and walls with a discreet, paintable slit. No complex attachment to concrete or leveling required; one person can install it in minutes. Minimum installation space: 5.9 in (15 cm).

Key Features:

• Slot length: 23.6 in (600 mm), fixed length

• Duct connection diameter: 2.95 in (75 mm)

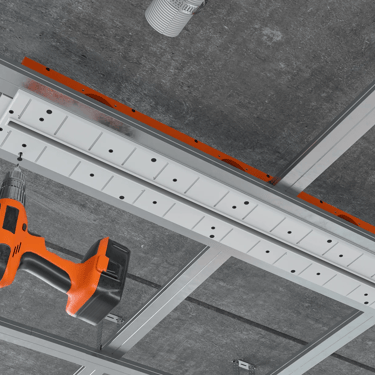

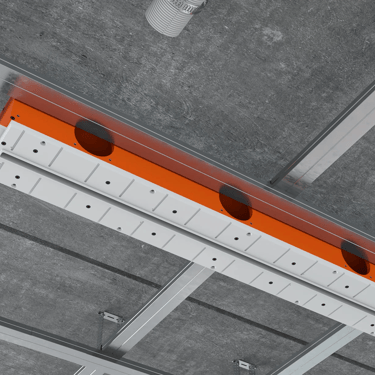

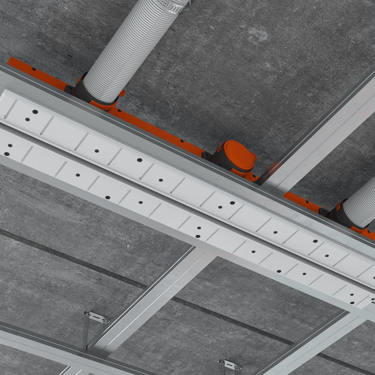

• Attaches directly to ceiling profiles; no concrete attachment needed

• PVC connection box and diffuser base with powder-coated black grilles

• Antistatic PP plastic connection fittings

• Built-in adjustable airflow balancing damper, adjustable from the outside using the included gauge

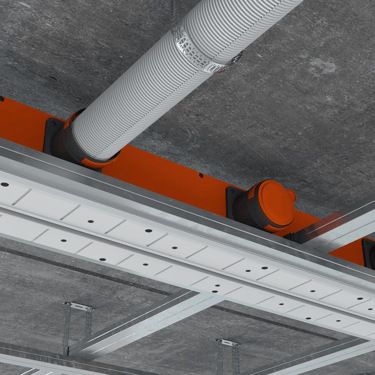

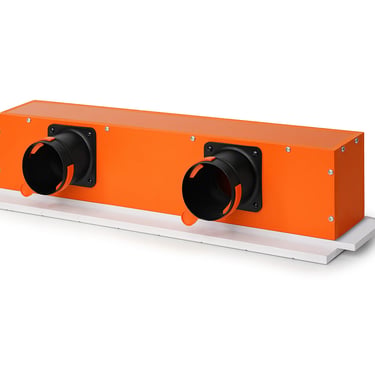

• Kit includes: diffuser with connection box and two 2.95 in (75 mm) duct connection fittings

Key Benefits:

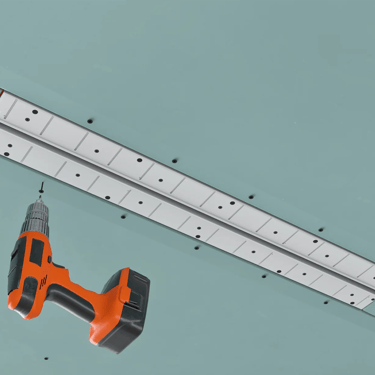

• Single-person installation in minutes

• Painted to match the ceiling in any color

• The airflow damper is adjustable from the outside after installation

• No complex leveling or concrete attachment required

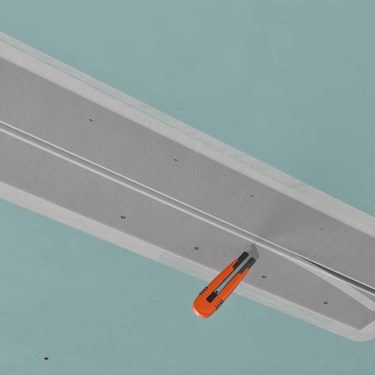

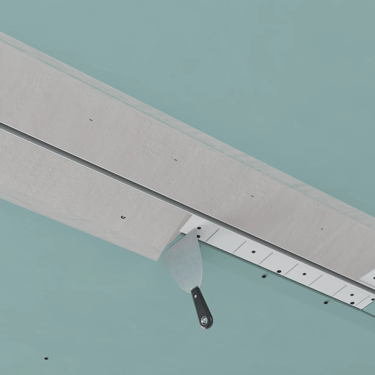

• Knauf finishing technology recommended for crack-free results

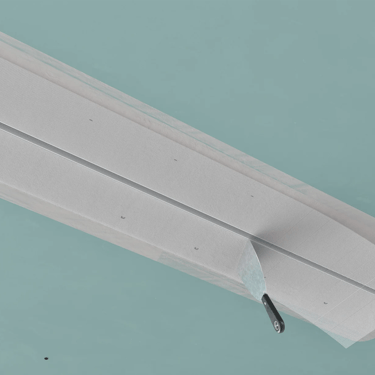

• Reinforcing with thin glass fabric prevents joint cracks
