LINEO-500
2 X 2.95" Duct Connectors
LINEO PROFILE 600
2 X 2.95" Duct Connectors
2 X 2.95" Duct Connectors
LINEO PROFILE VERTTICAL 600
ERGOVENT
LINEO
Frameless linear slot diffusers are designed for lower airflow applications in drywall ceilings and walls. Once plastered and painted to match the surrounding surface, only a slim slot remains visible, a clean, minimal detail that blends into any interior.

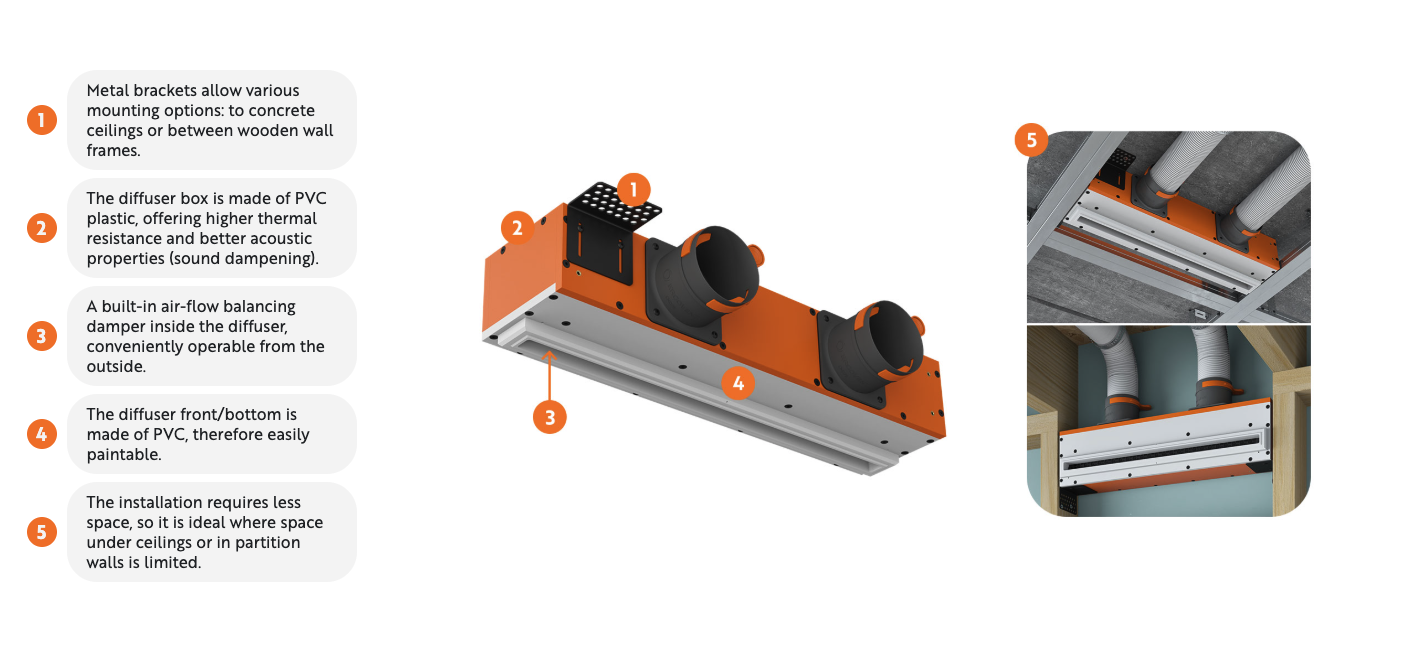

LINEO diffusers are compatible with 2.95 in (75 mm) flexible duct systems and require minimal installation space, making them suitable for both ceiling and wall applications. All models include a built-in airflow balancing damper for precise flow control and a quick-lock duct connection for fast, sealed installation.
Available in the United States through Ventek America.
LINEO-500
2.95" Duct Connectors
LINEO-600 PROFILE
LINEO-600 PROFILE VERTICAL
ERGOVENT
LINEO
Frameless linear slot diffusers are designed for lower airflow applications in drywall ceilings and walls. Once plastered and painted to match the surrounding surface, only a slim slot remains visible, a clean, minimal detail that blends into any interior.
LINEO diffusers are compatible with 2.95 in (75 mm) flexible duct systems and require minimal installation space, making them suitable for both ceiling and wall applications. All models include a built-in airflow balancing damper for precise flow control and a quick-lock duct connection for fast, sealed installation.
Available in the United States through Ventek America.
2.95" Duct Connectors
2.95" Duct Connectors

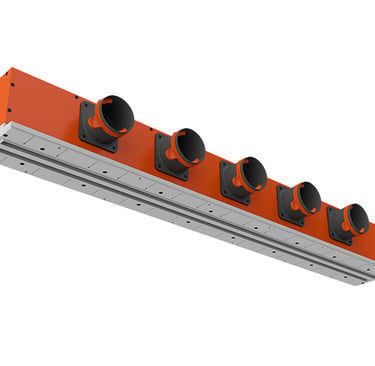

LINEO-1200 PROFILE 2 SLOT
2.95" Duct Connectors
LINEO-1000 PROFILE 1 SLOT
2.95" Duct Connectors
Seamless Air Distribution
LINEO linear diffusers deliver high-performance airflow balancing and maximum space savings with airtight duct connections. Once installed, the entire unit is completely plastered into the drywall, leaving only a sleek, minimal slot line visible as a clean architectural element.
Use Cases

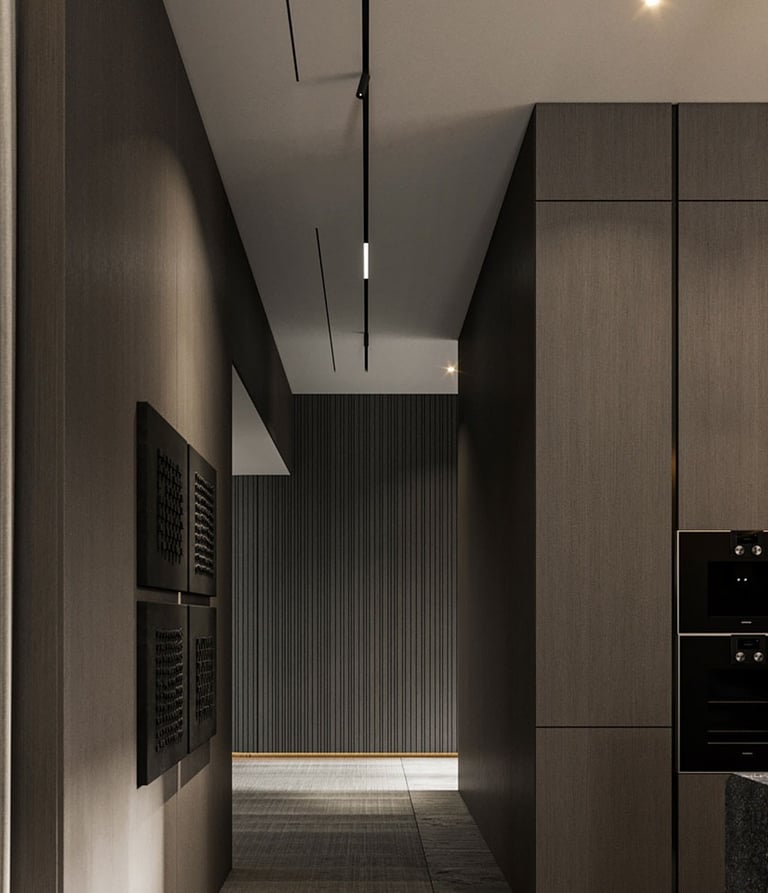

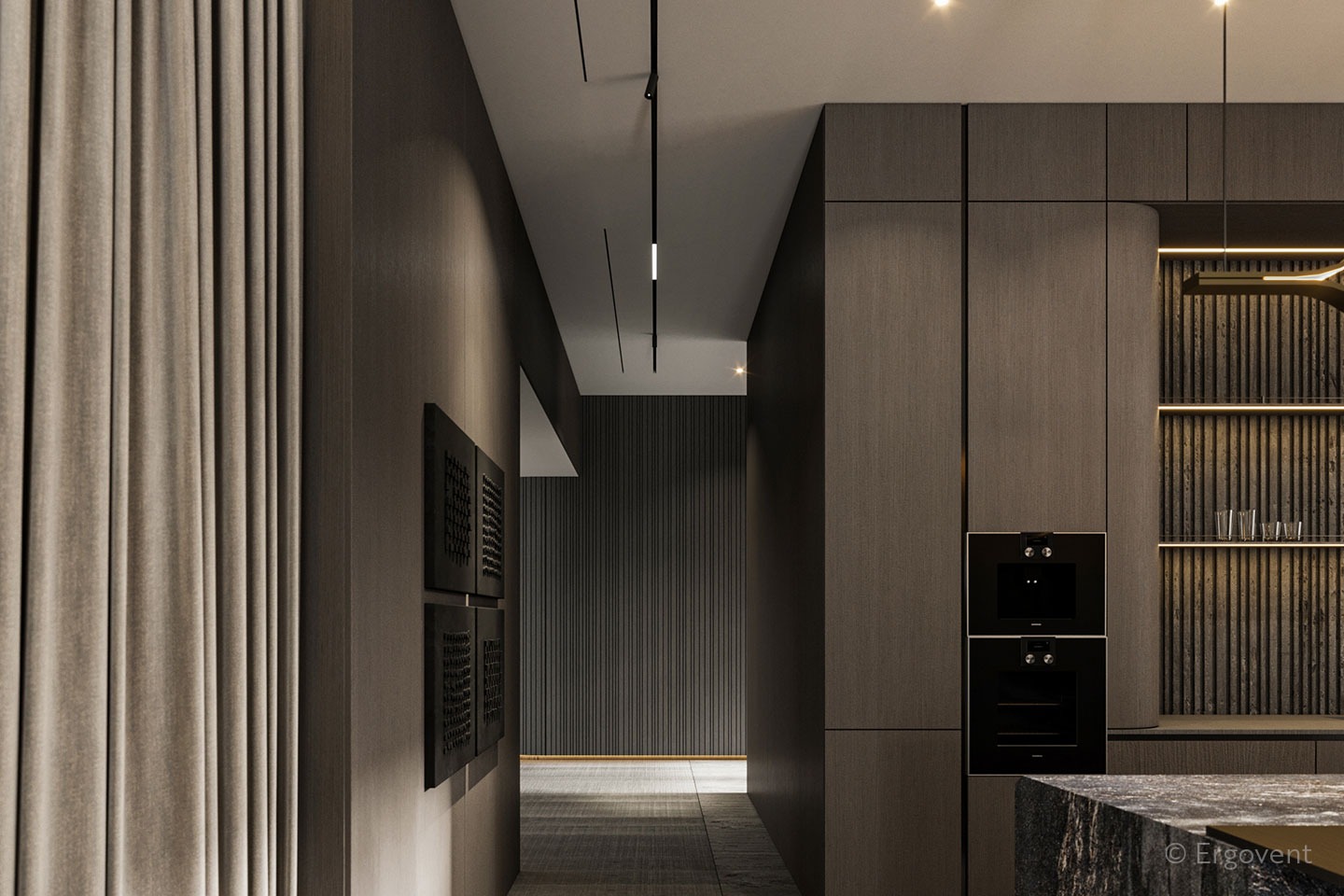

Built for expansive spaces where scale demands precision. A single continuous slot delivers uniform airflow across large ceilings, providing invisible and uninterrupted coverage.

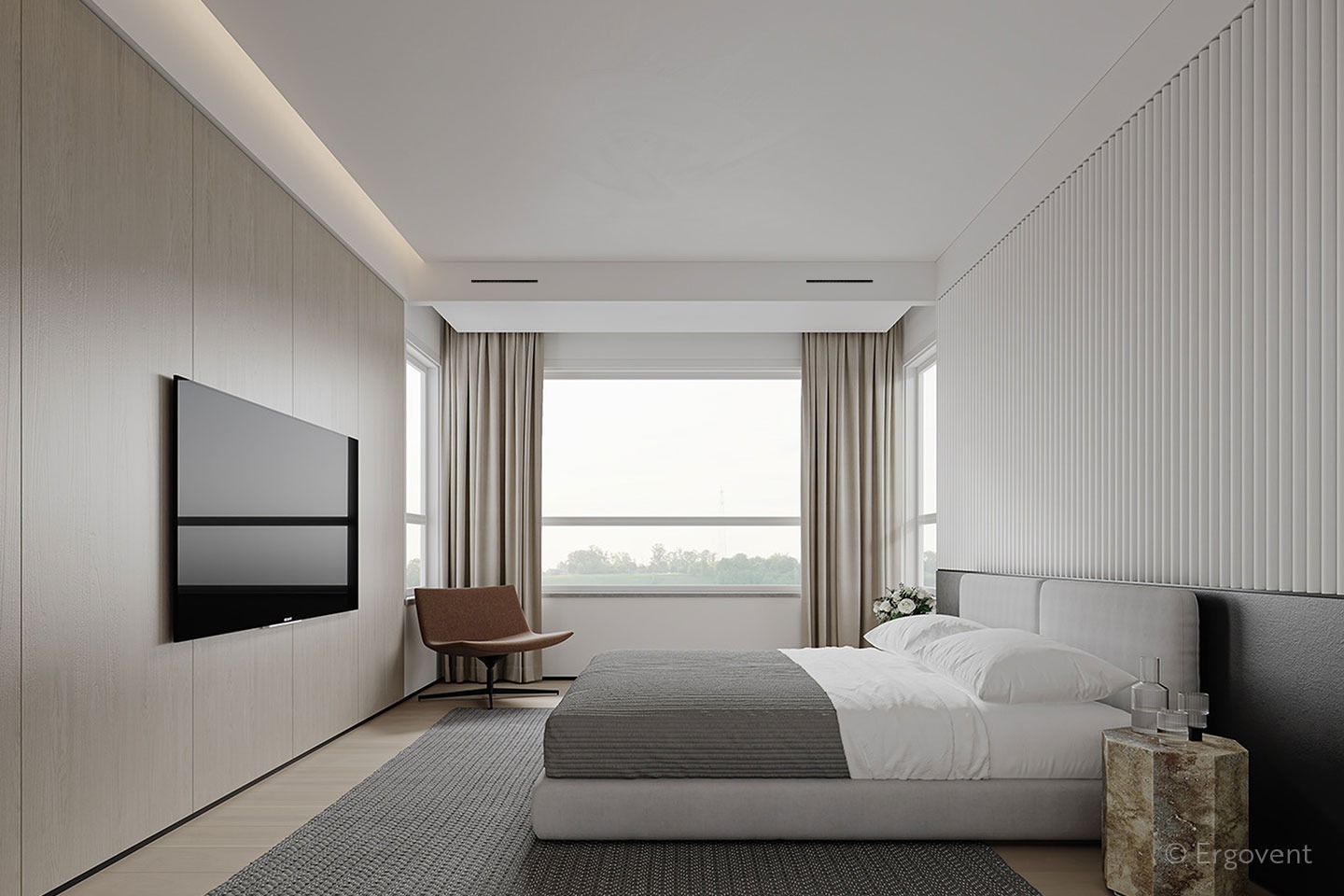

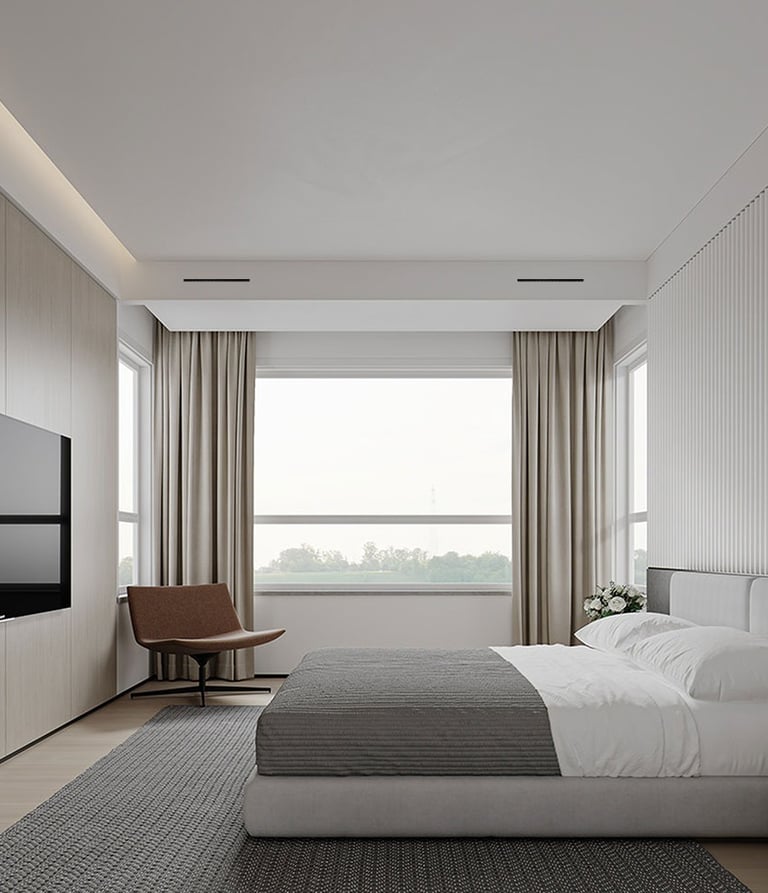

Vertical discharge diffuses air gently downward, eliminating drafts in bedrooms and hospitality spaces. Thermal comfort is achieved without disturbing the room's calm.
LINEO-1000 PROFILE 1 SLOT
LINEO-600 PROFILE VERTTICAL
LINEO-1200 PROFILE 2 SLOT

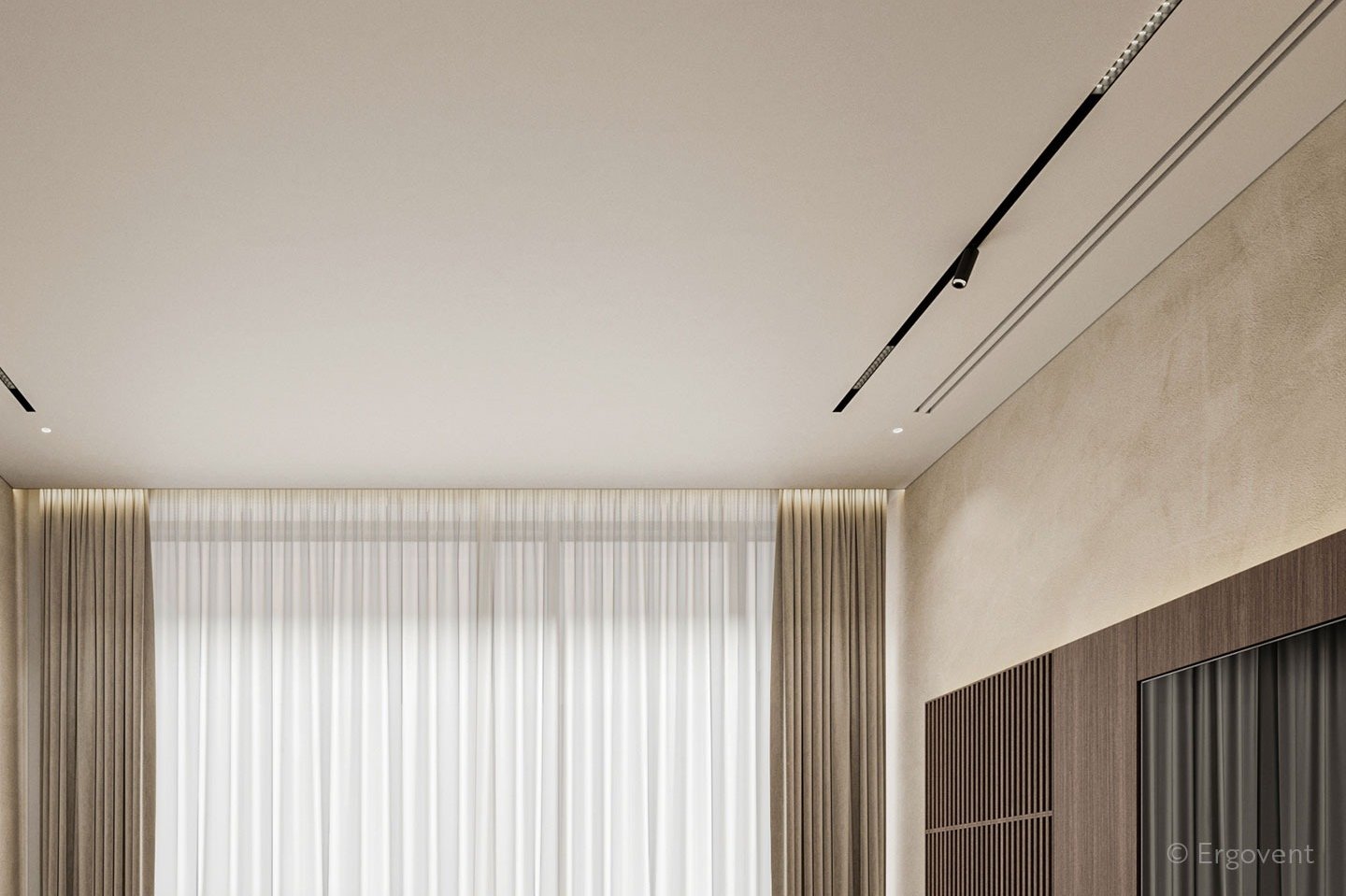

Built for wide-open interiors where scale and design work in equal measure. Two parallel slots span 47.2 in (1200 mm) across the ceiling, delivering balanced airflow as a clean, fixed architectural detail.
Use Cases
Built for expansive spaces where scale demands precision. A single continuous slot delivers uniform airflow across large ceilings, providing invisible and uninterrupted coverage.
Vertical discharge diffuses air gently downward, eliminating drafts in bedrooms and hospitality spaces. Thermal comfort is achieved without disturbing the room's calm.
Built for wide-open interiors where scale and design work in equal measure. Continuous parallel slots deliver balanced airflow while adding a deliberate architectural rhythm to the ceiling.
LINEO-1000 PROFILE 1 SLOT
LINEO-600 PROFILE VERTTICAL
LINEO-1200 PROFILE 2 SLOT
LINEO SPECIFICATIONS
LINEO-500
LINEO-600
LINEO-600 VERTICAL
Duct Sizes
Body Dimensions
Required Space
Air Volume
2.95"
21.26" x 4.37" x 8.09"
4.72"
2.95"
24.72" x 5.91" x 5.91"
24.72" x 6.69" x 7.46"
2.95"
Warranty
Paintable Surface, Antistatic Finish, Noiseless; Water, Chemicals, and Heat Resistant
Lifetime
Lifetime
Lifetime
Supply and Return
47.09 - 70.63 CFM
47.09 - 70.63 CFM
47.09 - 70.63 CFM
Application
Supply and Return
Supply and Return
Additional Features
6.69"
5.91"
LINEO-1000 1 SLOT
LINEO-1200 2 SLOT
2.95"
2.95"
Supply and Return
Supply and Return
Lifetime
Lifetime
6.69"
6.69"
47.09 - 70.63 CFM
47.09 - 70.63 CFM
39.37" x 7.64" x 6.34"
47.24" x 7.64" x 6.34"
