ERGOVENT AERO PRO SLIM BOX

Antistatic Diffuser Connection Box

AERO PRO SLIM BOX

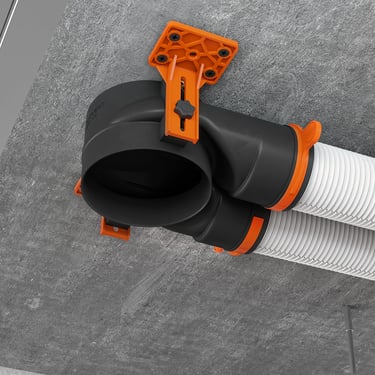

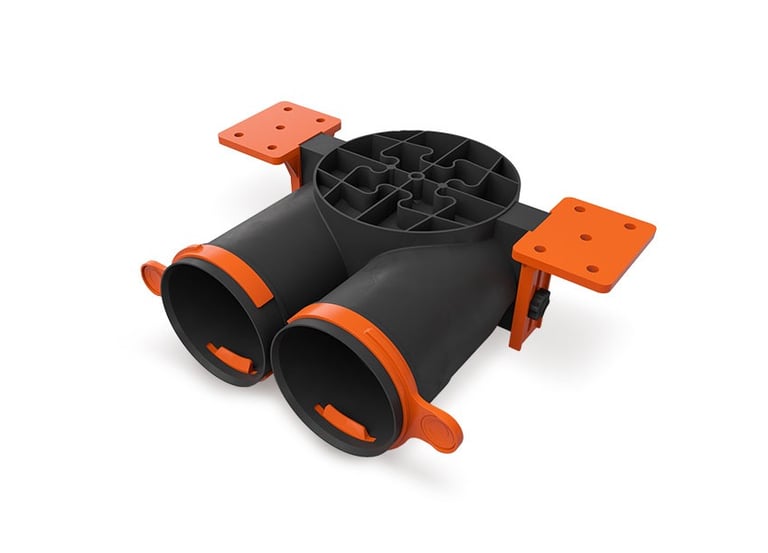

The ERGOVENT AERO PRO SLIM BOX is a low-profile plastic plenum box that takes two 2.95 in (75 mm) flexible ducts and presents one 4.92 in (125 mm) diffuser connection. Its side brackets set the mounting height, which lets a 4.92 in (125 mm) diffuser be fitted in a shallower ceiling void than a direct duct connection allows.

Technical Features

• Application: connecting 2.95 in (75 mm) flexible ducts to a 4.92 in (125 mm) diffuser connection

• Connection sizes: two at 2.95 in (75 mm) inlet, one at 4.92 in (125 mm) outlet

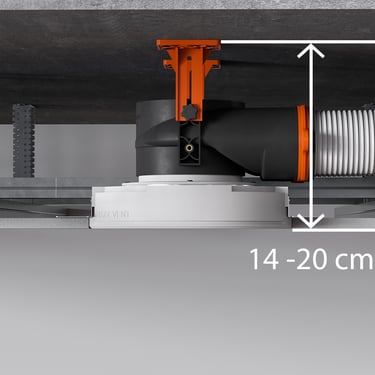

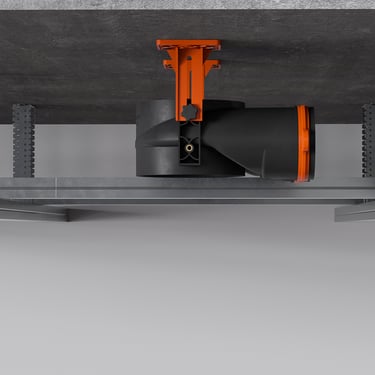

• Installs in a space of 5.51 in (140 mm), adjustable up to 7.87 in (200 mm) via the side brackets

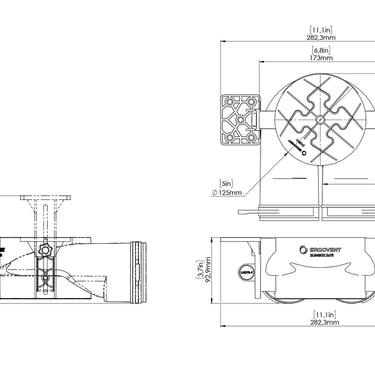

• Body: 11.1 x 6.8 in (282.3 x 173 mm)

• Material: antistatic plastic

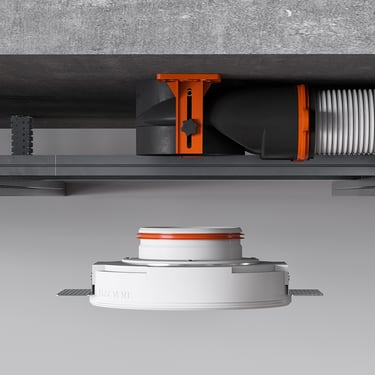

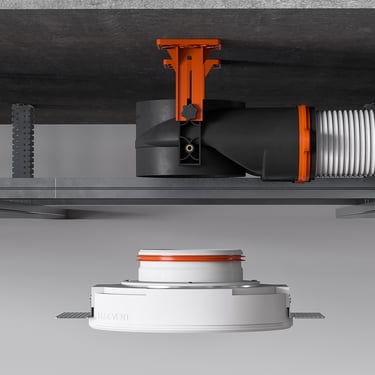

• Compatible with ERGOVENT RONDO 125, KVADRO 125, and other diffusers with a 4.92 in (125 mm) connection

• An end cap with gasket is required when only one duct connection is used, sold separately as DUCT CAP 2.95 IN

Key Benefits

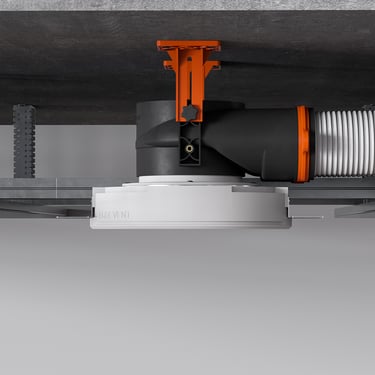

• Brings a 4.92 in (125 mm) diffuser into a void as shallow as 5.51 in (140 mm)

• Bracket height adjusts across a 5.51 to 7.87 in (140 to 200 mm) range

• Converts two 2.95 in (75 mm) duct runs into one 4.92 in (125 mm) diffuser connection

• Works with any diffuser using a 4.92 in (125 mm) connection, not only ERGOVENT
