LINEO-PRO CONDI 1 SLOT
4.92" Duct Connectors
LINEO-PRO CONDI 2 SLOT
LINEO-PRO CONDI 3 SLOT
ERGOVENT
LINEO-PRO CONDI
Frameless linear slot diffusers engineered for air conditioning systems. Mount directly onto gypsum ceiling profiles and disappear after plastering and painting. Only a slim, clean slot remains visible.
EPP connection box with full thermal insulation, no additional insulation required. Prevents condensation. Compatible with 4.92 in (125 mm), 5.91 in (150 mm), and 6.3 in (160 mm) ducts.
PUZZLE lock system for multi-meter runs. Single-person installation.
Available in the United States through Ventek America.
4.92" Duct Connectors
5.91" / 6.3" Duct Connectors
Unboxing LINEO-PRO Diffuser

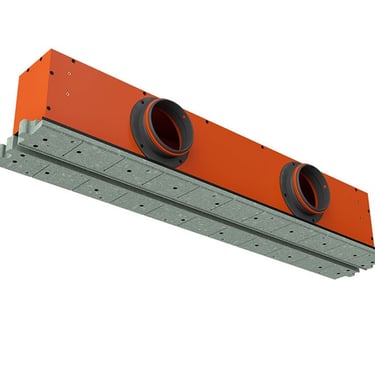

LINEO-PRO CONDI 1 SLOT
4.92" Duct Connectors

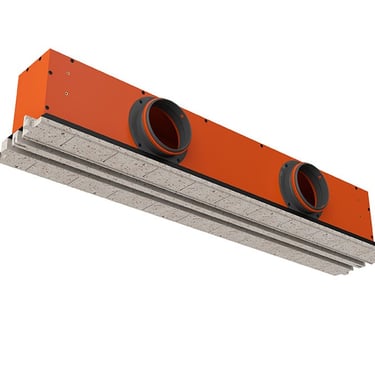

LINEO-PRO CONDI 2 SLOT
LINEO-PRO CONDI 3 SLOT
ERGOVENT
LINEO-PRO CONDI
Frameless linear slot diffusers engineered specifically for air conditioning systems. Mount directly onto gypsum ceiling profiles. Single-slot models disappear completely after plastering and painting. Two and three-slot models remain subtly visible, adding a clean architectural detail to the ceiling.

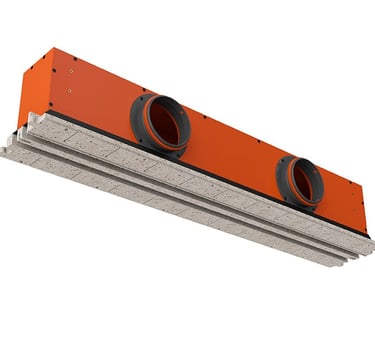

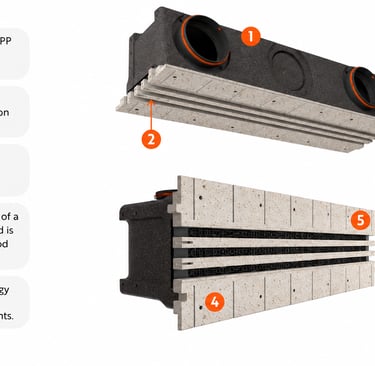

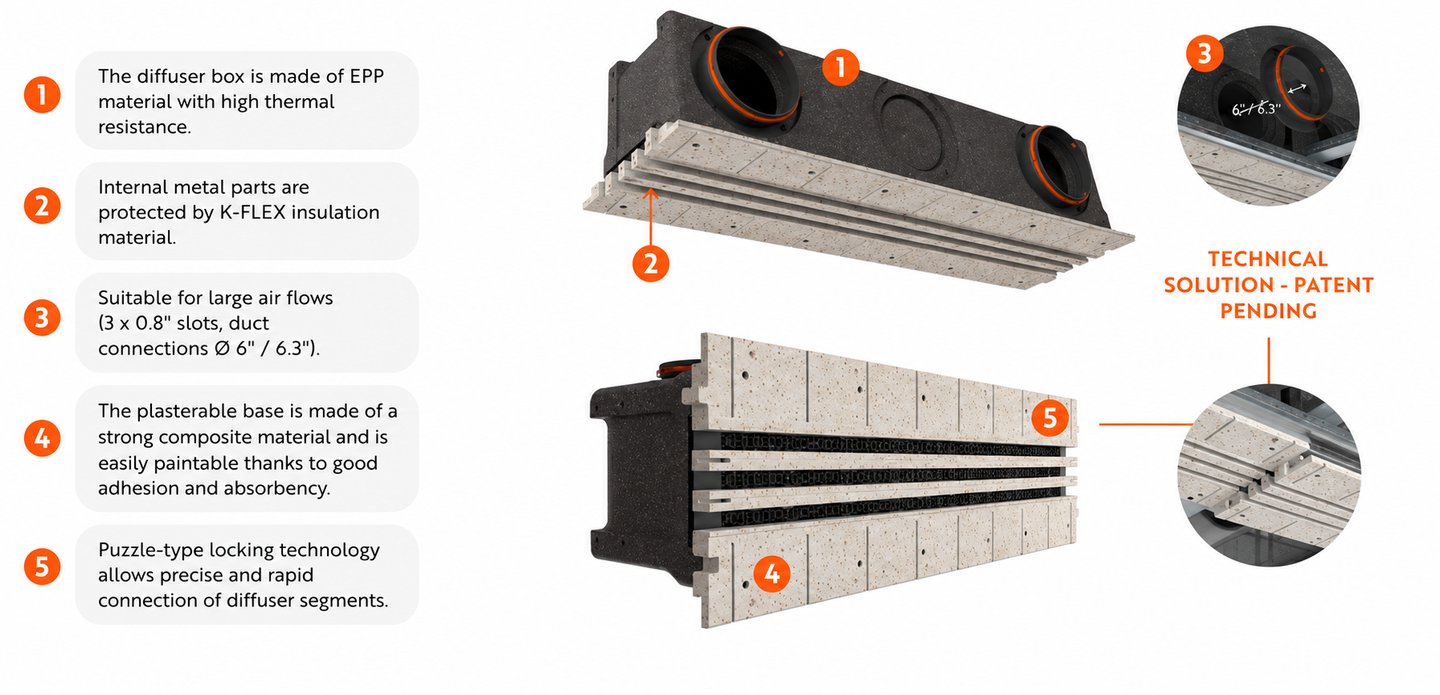

The connection box is made from EPP, an extremely lightweight material with high thermal resistance and full insulation; no additional insulation is required. Metal components are fully enclosed to prevent condensation. Designed for high-capacity cooling systems with compatible duct diameters of 4.92 in (125 mm), 5.91 in (150 mm), and 6.3 in (160 mm).
The puzzle-lock system connects 39.4 in (1 m) segments end-to-end for continuous multi-meter runs. Single-person installation directly onto gypsum ceiling profiles, no concrete anchoring required. The bottom plate can be plastered and painted immediately after installation.
Available in the United States through Ventek America.
4.92" Duct Connectors
5.91" / 6.3" Duct Connectors
Unboxing LINEO-PRO Diffuser
Advanced Climate Control
ERGOVENT LINEO PRO CONDI linear conditioning diffusers are specifically designed for high-performance air conditioning systems. Their precise aerodynamic engineering ensures optimal, uniform cold air distribution and low noise levels, while the smart frameless design allows for seamless drywall installation and a flawless architectural finish.
Use Cases

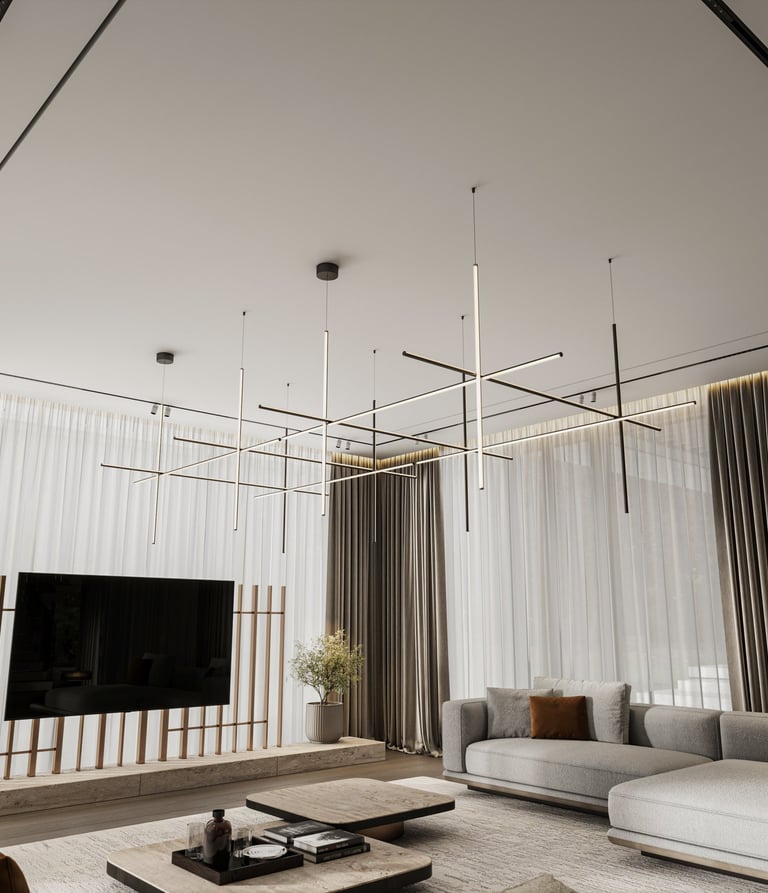

EPP-insulated to prevent condensation in demanding environments. A single frameless slot delivers invisible airflow in lobbies, showrooms, and high-ceiling spaces.

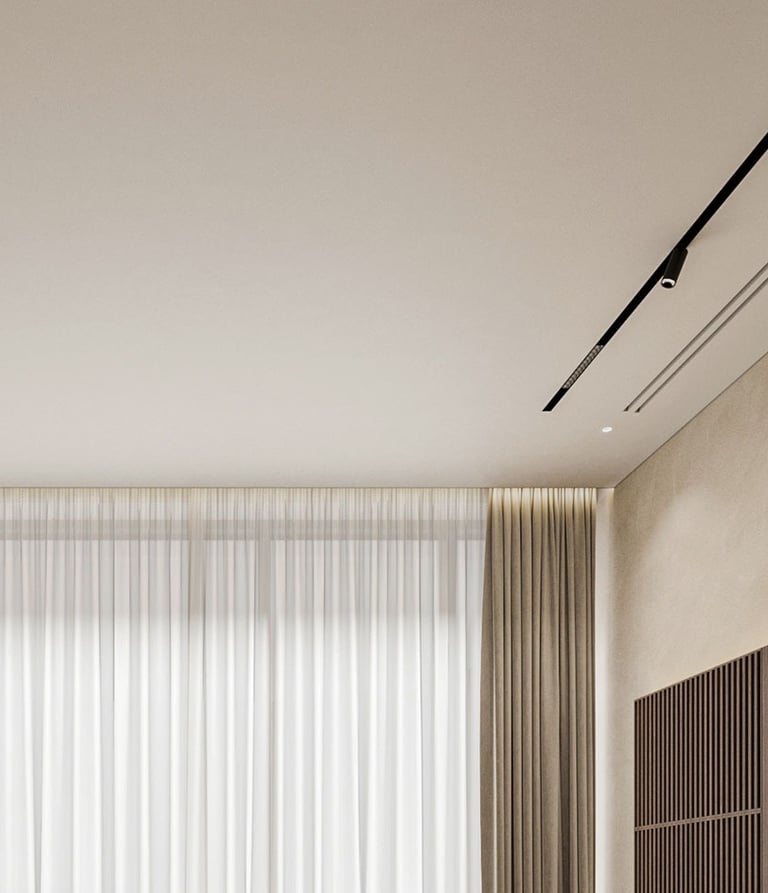

Double slot capacity with full condensation protection. Ideal for humid and climate-controlled spaces where performance and a flawless ceiling finish are both non-negotiable.

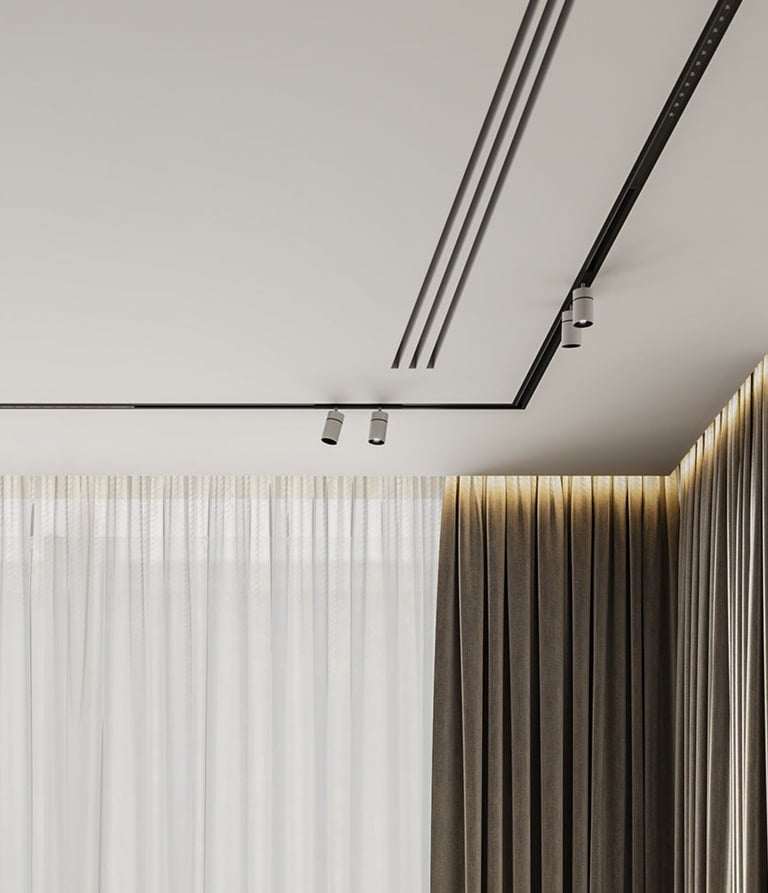

Maximum airflow across three slots, engineered for spaces with the highest ventilation demands. EPP insulation prevents moisture buildup while the diffuser remains completely invisible.
LINEO-PRO CONDI 3 SLOT
LINEO-PRO CONDI 2 SLOT
LINEO-PRO CONDI 1 SLOT
Use Cases

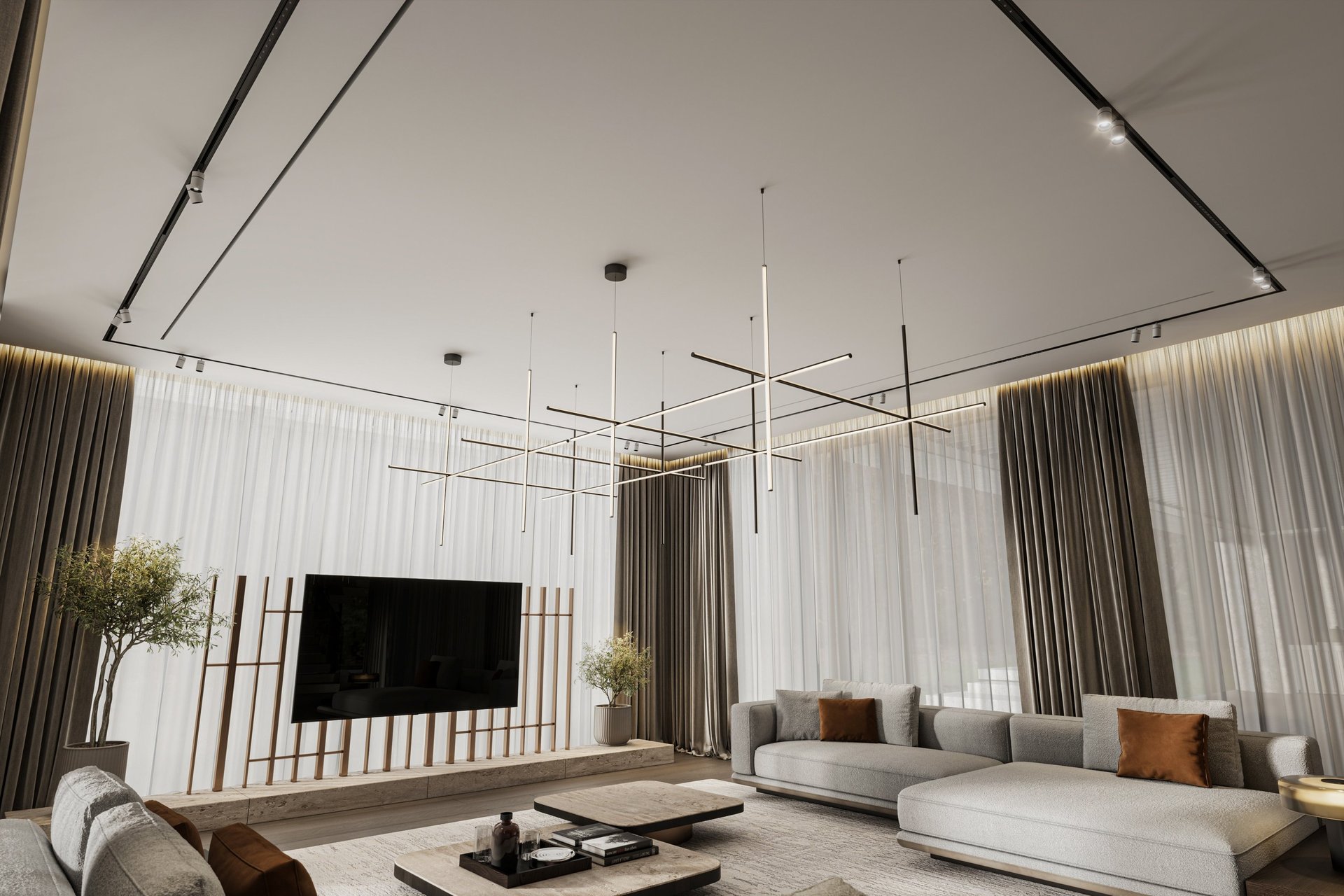

EPP-insulated to prevent condensation in demanding environments. A single frameless slot delivers invisible airflow in lobbies, showrooms, and high-ceiling spaces.

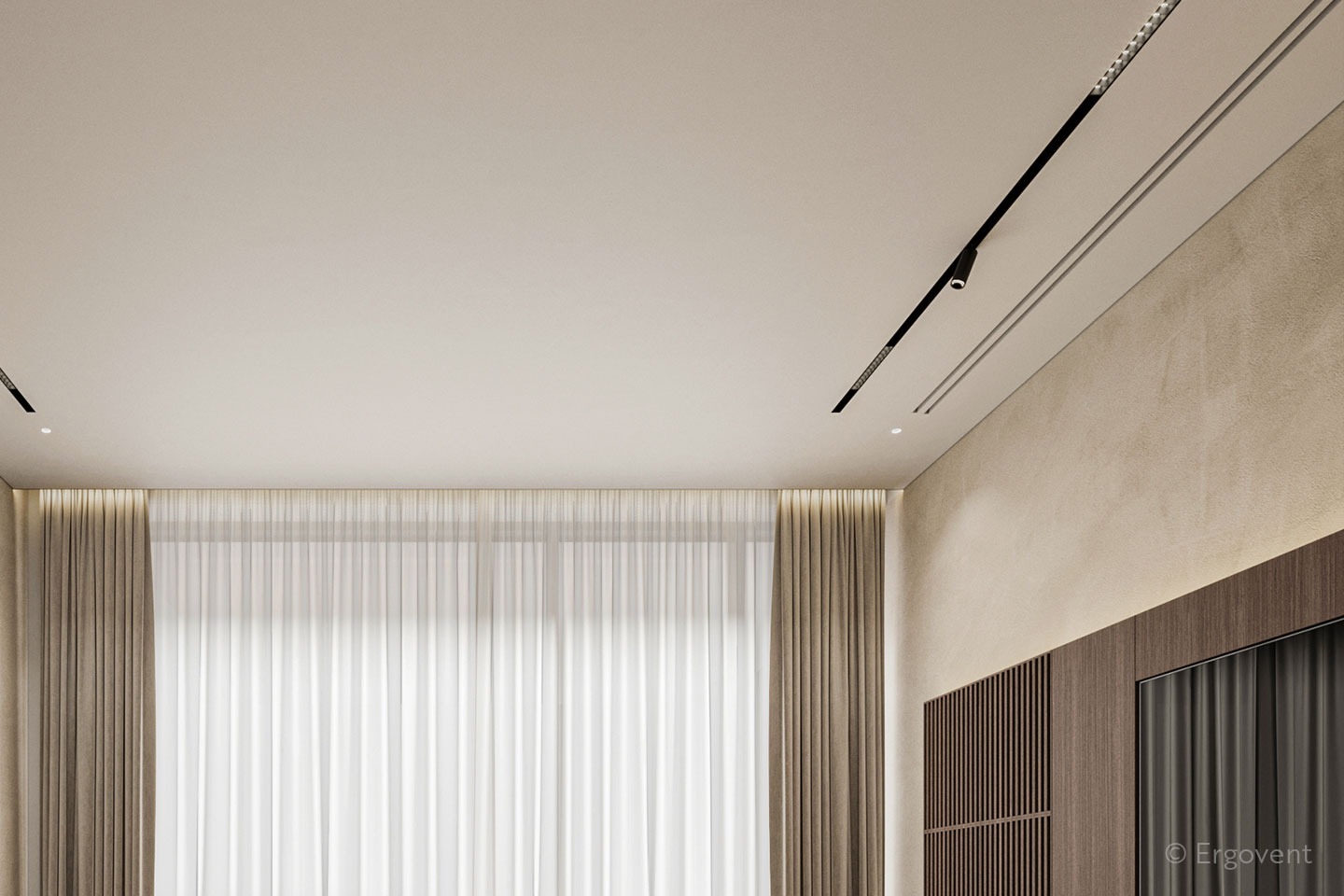

Double slot capacity with full condensation protection. Ideal for humid and climate-controlled spaces where performance and a flawless ceiling finish are both non-negotiable.

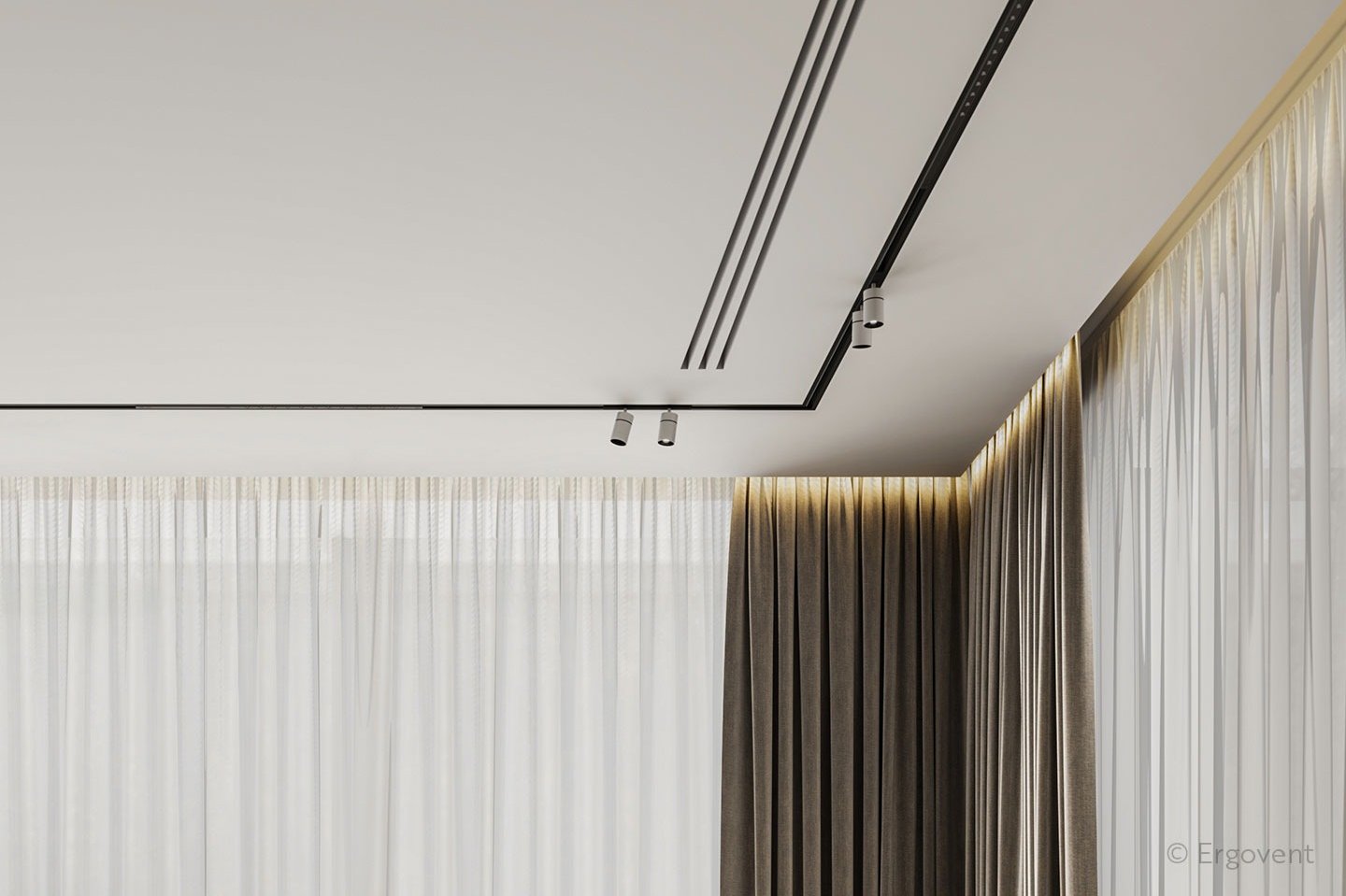

Maximum airflow across three slots, engineered for spaces with the highest ventilation demands. EPP insulation prevents moisture buildup while the diffuser remains completely invisible.
LINEO-PRO CONDI 3 SLOT
LINEO-PRO CONDI 2 SLOT
LINEO-PRO CONDI 1 SLOT
LINEO-PRO CONDI SPECIFICATIONS
LINEO-PRO CONDI 1 SLOT
LINEO-PRO CONDI 2 SLOT
LINEO-PRO CONDI 3 SLOT
Duct Sizes
Body Dimensions
Required Space
Air Volume
4.92"
42.56" x 7.64" x 7.76"
Warranty
Paintable Surface, Antistatic, Noiseless; Water; Made from Recycled Plastic
Lifetime
Lifetime
Lifetime
Supply and Return
176.6 - 382.6 CFM
111.83 - 235.43 CFM
Application
Supply and Return
Supply and Return
Additional Features
7.87"
4.92"
5.91" / 6.3"
40.43" x 11.42" x 9.41"
9.06"
42.56" x 7.64" x 7.76"
7.87"
111.83 - 235.43 CFM
