ERGOVENT LINEO PRO

Linear Frameless Gypsum Diffuser Imitation

LINEO PRO MOULAGES - 1 Slot

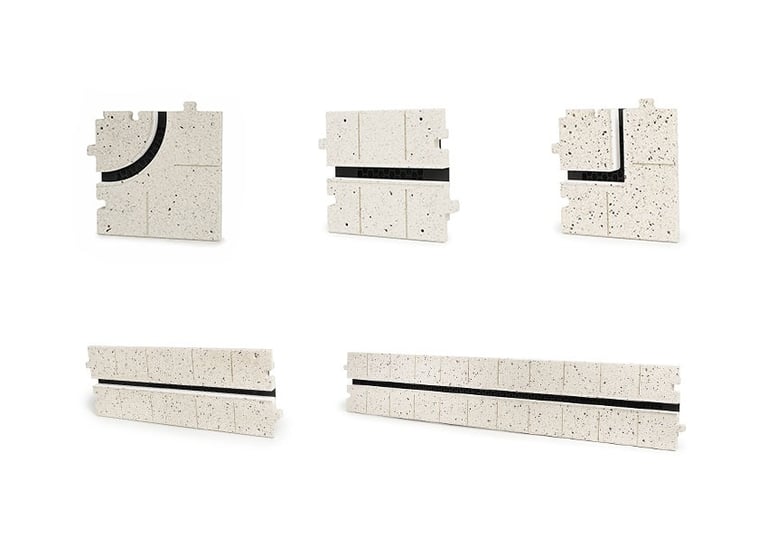

The ERGOVENT LINEO PRO MOULAGE 1 SLOT is a non-ventilating filler segment that continues a LINEO PRO PUZZLE run where a duct connection is not needed. It carries the same single slot and the same face as the active diffuser and joins the line on the same puzzle lock, so the finished ceiling reads as one continuous line. Like the diffusers it sits between, it is plastered and painted to match the surrounding surface.

Technical Features

• Application: continuing a single-slot LINEO PRO PUZZLE run without a duct connection

• Slot width: 0.79 in (20 mm), matching the LINEO PRO PUZZLE single-slot profile

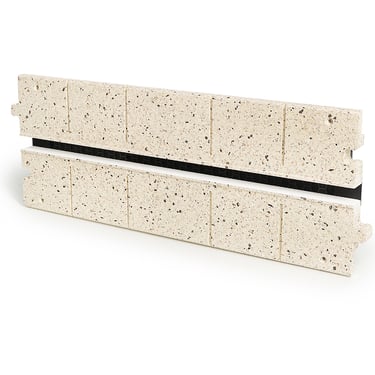

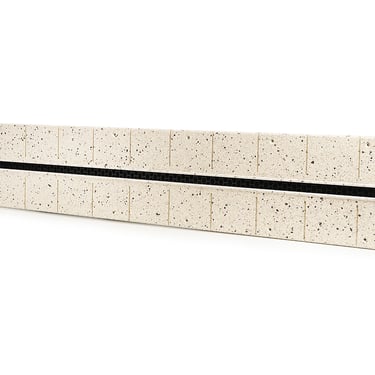

• Straight lengths: 7.87 in (200 mm), 19.69 in (500 mm), and 41.34 in (1050 mm)

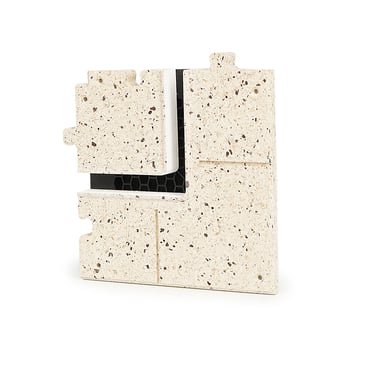

• Corner pieces: 90-degree right angle and 90-degree rounded

• No duct connection and no airflow

• Joins any LINEO PRO PUZZLE product on the same puzzle lock, ventilation, or CONDI, provided the slot count matches

• Supplied only with a LINEO PRO PUZZLE diffuser of the same slot count, not sold on its own

Key Benefits

• Continues a run where the design calls for length rather than more air

• Same face and same slot as the active diffuser, so the join does not show once plastered and painted

• Right-angle and rounded-corner pieces turn a run without breaking the line

• Costs less than an active diffuser of the same length

• Pairs with any single-slot LINEO PRO PUZZLE diffuser, ventilation, or CONDI alike
