ERGOVENT LINEO PRO

Linear Frameless Conditioning Diffuser

LINEO PRO CONDI 125 - 1 Slot

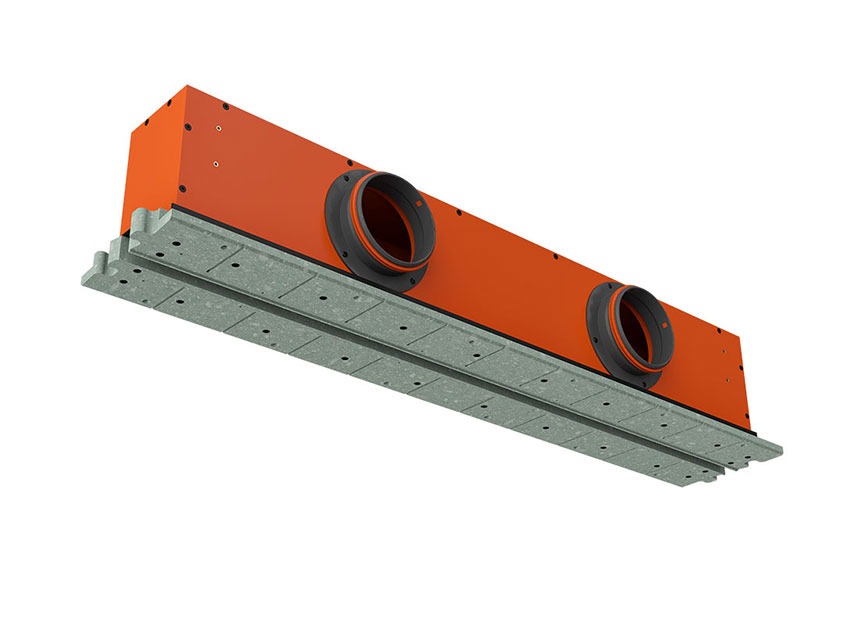

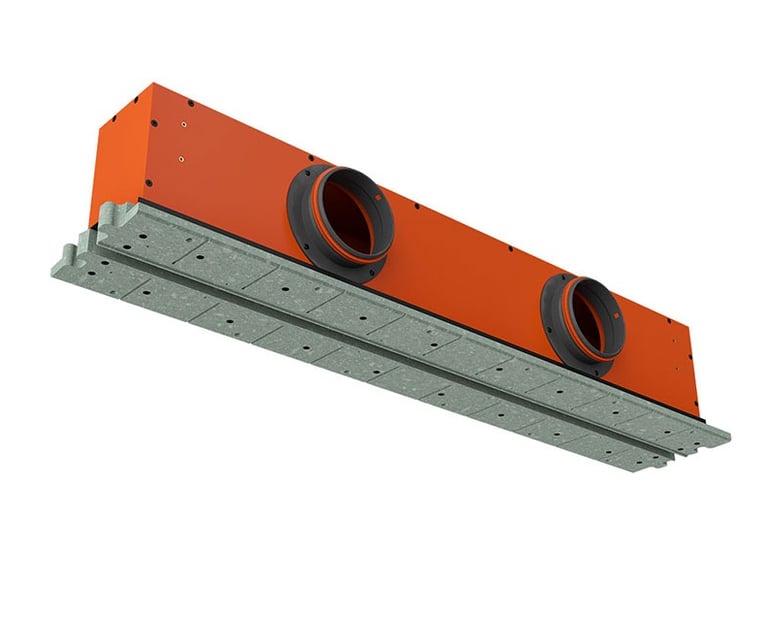

The ERGOVENT LINEO PRO CONDI 1 SLOT is a linear slot diffuser with a thermally insulated plenum box, built for air conditioning as well as ventilation. It is fixed to the gypsum profiles of a drywall ceiling, and the body is plastered and painted to match the surrounding surface. Its puzzle-lock ends join to further segments, so cooling and ventilation runs can share one line.

Technical Features

• Application: air conditioning and ventilation

• Connection size: 4.92 in (125 mm), two connections per unit

• Duct positions: six pre-scored knockouts, three on the side and three on the top, at 13.5 in (344 mm) centers

• Slot: 41.34 x 0.79 in (1050 x 20 mm)

• Minimum installation height: 7.87 in (200 mm)

• Installation width between profiles: 5.28 in (134 mm)

• Plenum box: molded EPP, thermally insulating

• Available with or without a built-in balancing damper

• Links with 2.95 in (75 mm) and 3.54 in (90 mm) puzzle-lock diffusers in one run

Key Benefits

• Six duct positions, so the connection can be made from the side or the top to suit the void

• Insulated plenum box, so no separate insulation has to be applied on site

• Joins in line with 75 mm and 90 mm puzzle-lock diffusers, so one run can carry both duties

• Plastered and painted to match the surrounding surface, so only the slot remains on the finished face

• Segments lock end to end for runs longer than one unit
