ERGOVENT LINEO PRO

Linear Frameless Conditioning Diffuser

LINEO PRO CONDI 125 - 2 Slot

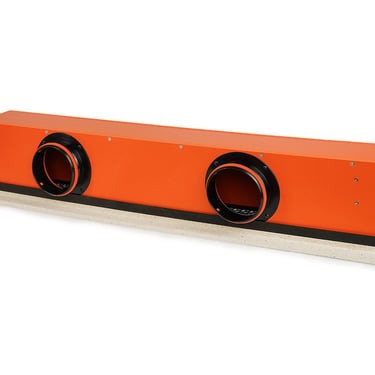

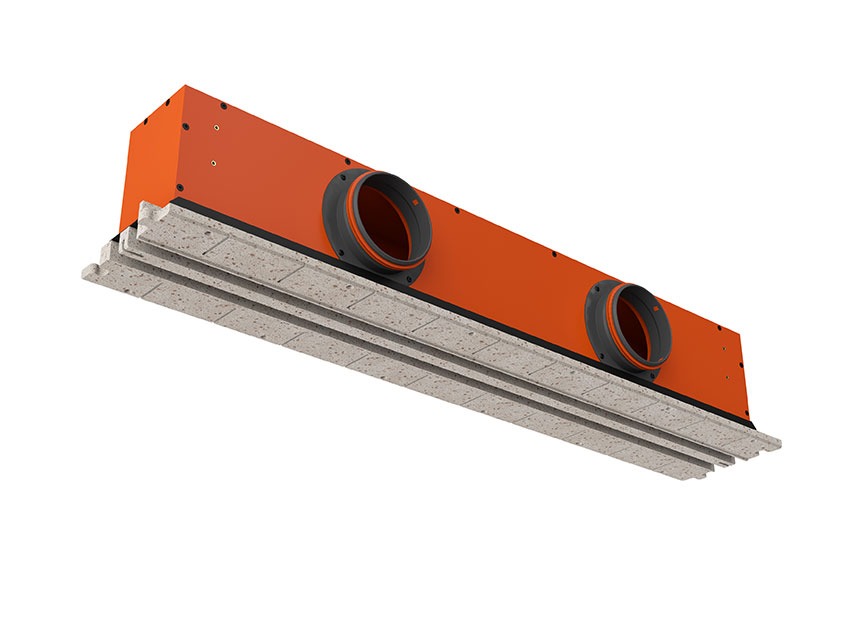

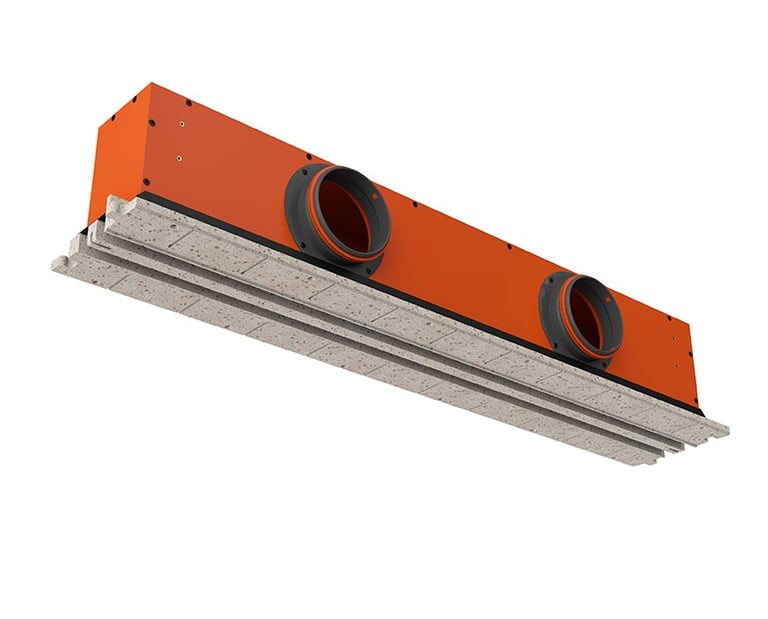

The LINEO-PRO CONDI 2 SLOT is a frameless two-slot linear diffuser for air conditioning and ventilation. The EPP plenum box provides high thermal resistance, minimizing the risk of condensation without additional insulation and making the diffuser suitable for both air conditioning and ventilation. The two-slot profile stays visible after plastering and painting as a clean architectural line. Its puzzle-lock ends join to further segments, so cooling and ventilation runs can share one line. Made to order. The lead time is confirmed on your quote.

Technical Features

• Application: air conditioning and ventilation

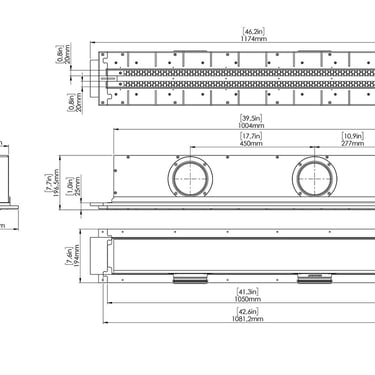

• Connection size: 4.92 in (125 mm), two connections per unit

• Duct positions: six pre-scored knockouts, three on the side and three on the top, at 13.5 in (344 mm) centers

• Slots: two, each 41.34 x 0.79 in (1050 x 20 mm)

• Minimum installation height: 7.52 in (191 mm)

• Plenum box: molded EPP, thermally insulating

• Available with or without a built-in balancing damper

• Links with 2.95 in (75 mm), 3.54 in (90 mm), and 4.92 in (125 mm) puzzle-lock diffusers in one run

Key Benefits

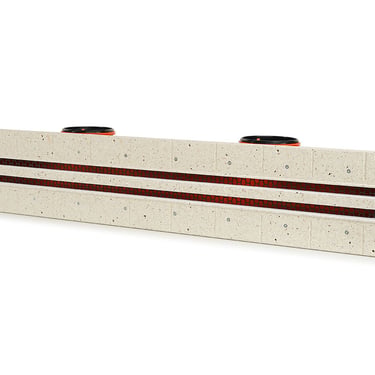

• Two slots read as a deliberate surface line after painting

• Six duct positions, so the connection can be made from the side or the top to suit the void

• Insulated plenum box, so no separate insulation has to be applied on site

• Joins in line with 2.95 in (75 mm), 3.54 in (90 mm), and 4.92 in (125 mm) puzzle-lock diffusers

• Plastered and painted to match the surrounding surface, so only the slots remain on the finished face

• Segments lock end to end for runs longer than one unit
