ERGOVENT LINEO PRO

Linear Frameless Gypsum Diffuser

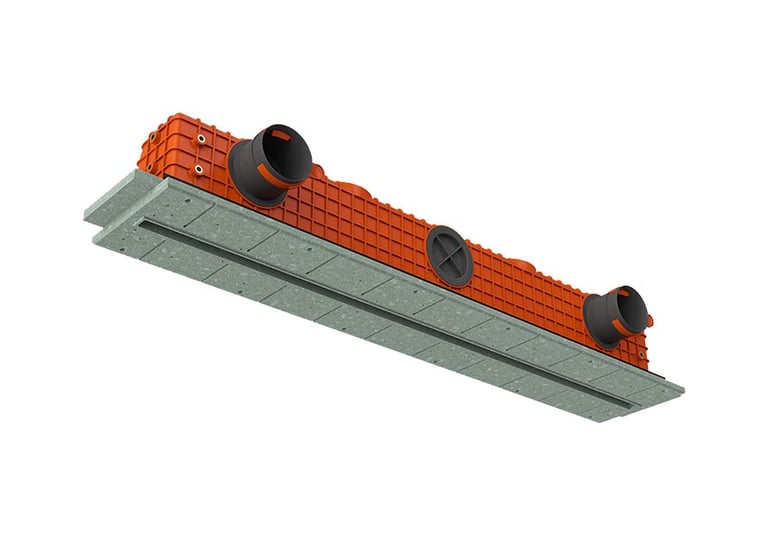

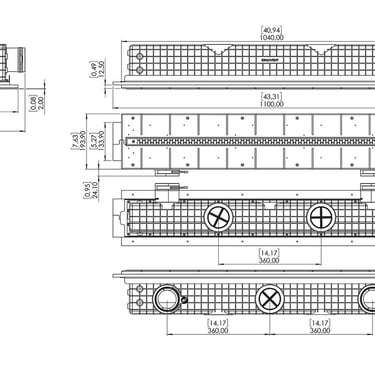

LINEO PRO PROFILE 75 / 90 1 Slot

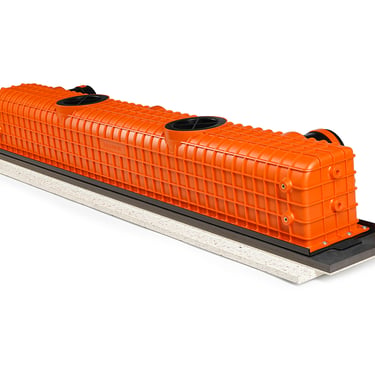

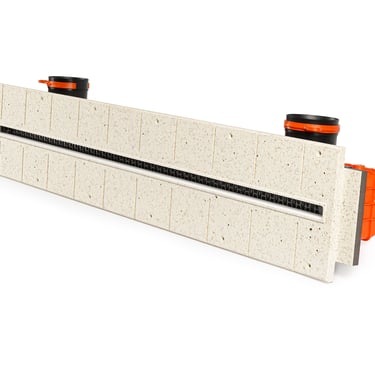

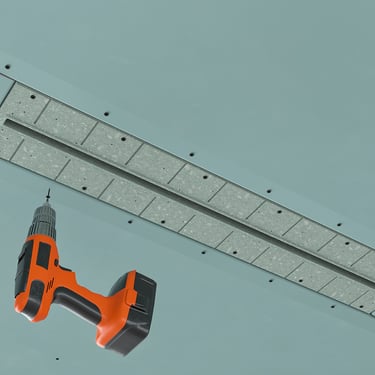

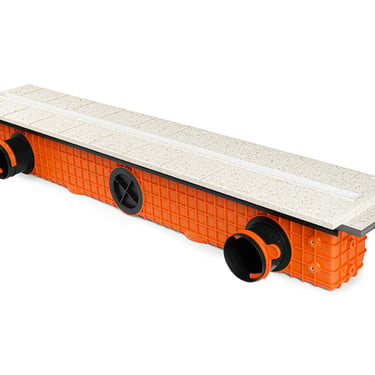

The ERGOVENT LINEO PRO PROFILE 1 SLOT is a linear slot diffuser that is fixed to the gypsum profiles of a drywall ceiling or wall. The body is plastered and painted to match the surrounding surface, leaving a single slot on the finished face. The balancing damper is reached through the slot once the surface is finished.

Technical Features

• Application: supply and extraction

• Connection sizes: 2.95 in (75 mm) / 3.54 in (90 mm)

• Air volume: 47.1 to 70.6 CFM (80 to 120 m³/h)

• Slot: 39.37 x 0.79 in (1000 x 20 mm), fixed length

• Minimum installation height: 6.30 in (160 mm)

• Installation width between profiles: 5.31 in (135 mm)

• Built-in balancing damper

Key Benefits

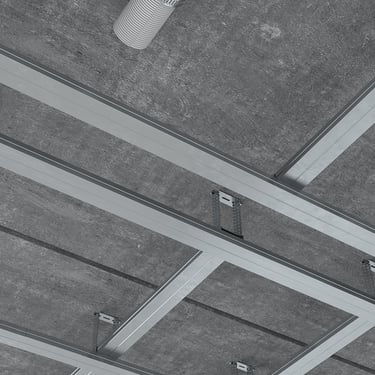

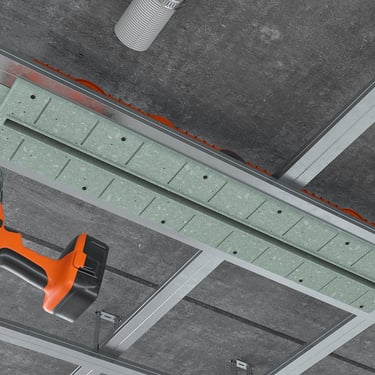

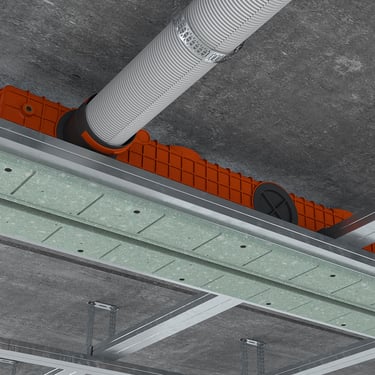

• Fixes directly to ceiling profiles, with no anchoring to the structural slab

• Plastered and painted to match the surrounding surface, so only the slot remains on the finished face

• Damper reached through the slot after finishing

• iF Design Award winner
