ERGOVENT LINEO PRO

Linear Frameless Gypsum Diffuser

LINEO PRO PUZZLE 75 / 90 1 Slot

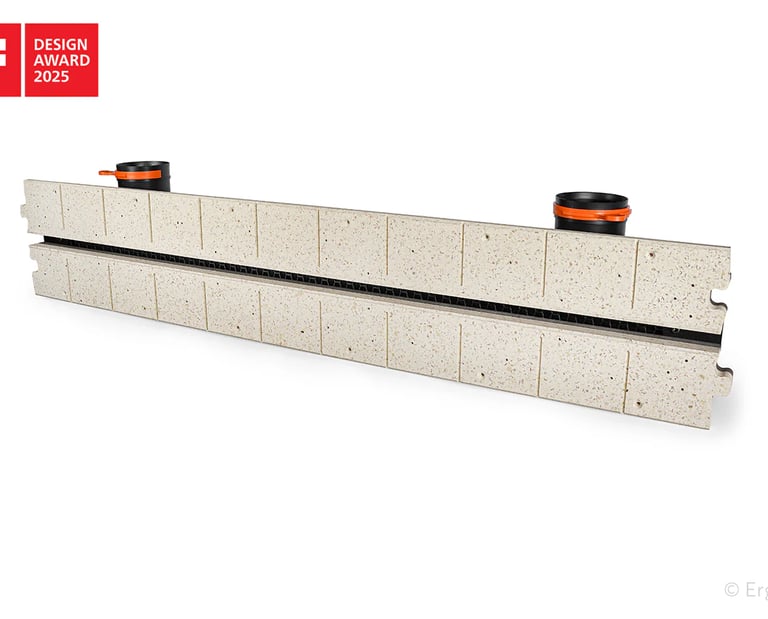

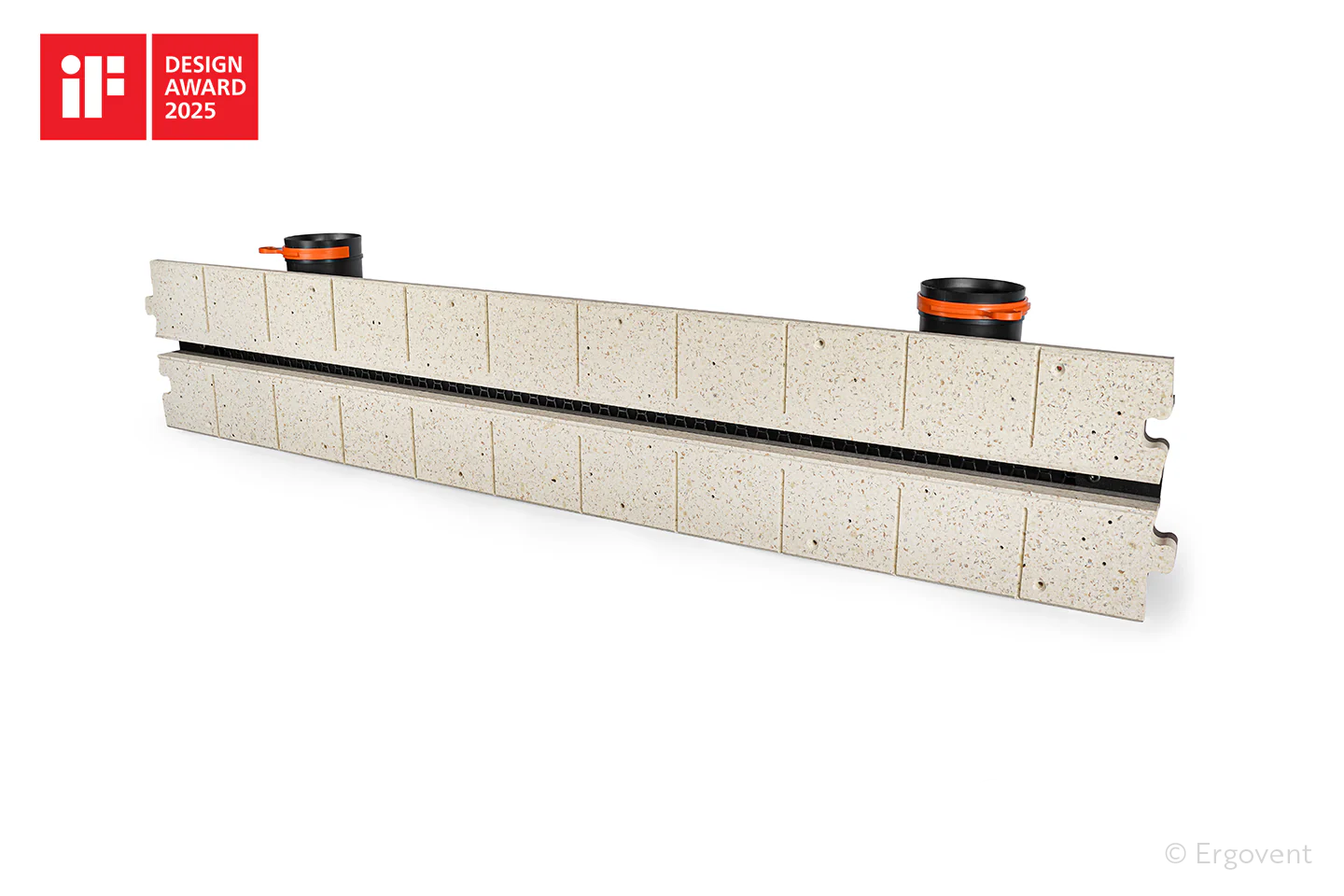

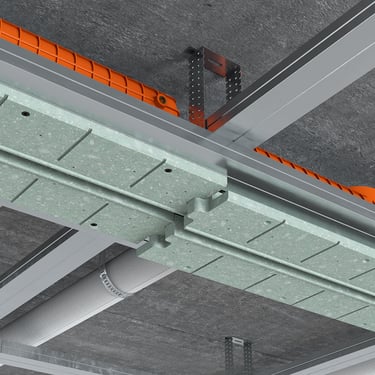

The ERGOVENT LINEO PRO PUZZLE 1 SLOT is a linear slot diffuser that is fixed to the gypsum profiles of a drywall ceiling or wall. The body is plastered and painted to match the surrounding surface, leaving a single slot on the finished face. Its puzzle-lock ends join to further segments, so several units form one continuous slot line.

Technical Features

• Application: supply and extraction

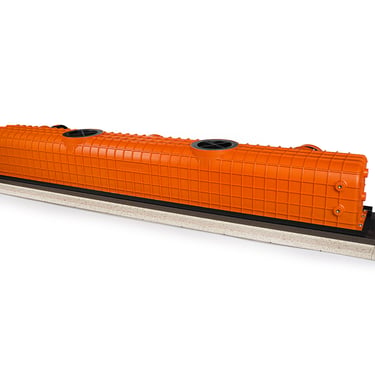

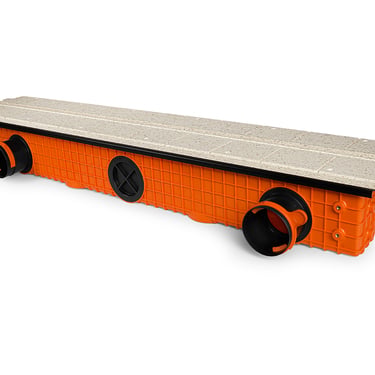

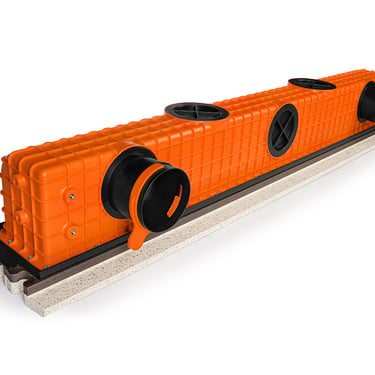

• Connection sizes: 2.95 in (75 mm) / 3.54 in (90 mm)

• Air volume: 47.09 to 70.63 CFM (80 to 120 m³/h)

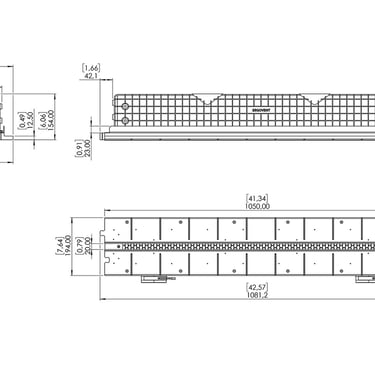

• Slot: 41.34 x 0.79 in (1050 x 20 mm)

• Minimum installation height: 6.3 in (160 mm)

• Installation width between profiles: 5.31 in (135 mm)

• Built-in balancing damper, adjustable through the slot

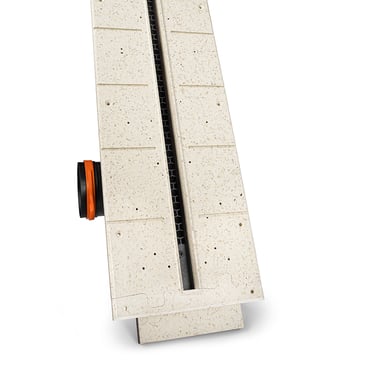

• Puzzle-lock connection for multi-segment runs

Key Benefits

• Segments lock end to end, so a run can be built to the length a room needs

• Plastered and painted to match the surrounding surface, so only the slot remains on the finished face

• Damper adjustable through the slot after finishing

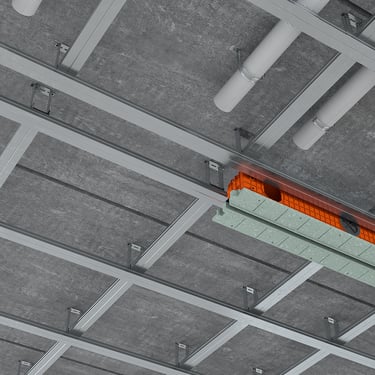

• Fixes directly to ceiling profiles, with no anchoring to the structural slab

• iF Design Award winner
