ERGOVENT LINEO
Linear Frameless Gypsum Diffuser


LINEO PRO PUZZLE 2 SLOT
2.95" / 3.54"

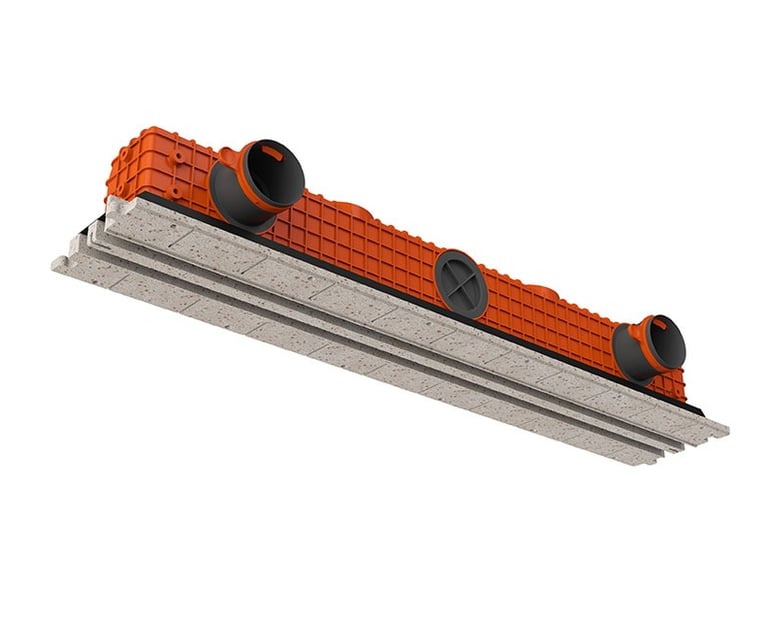

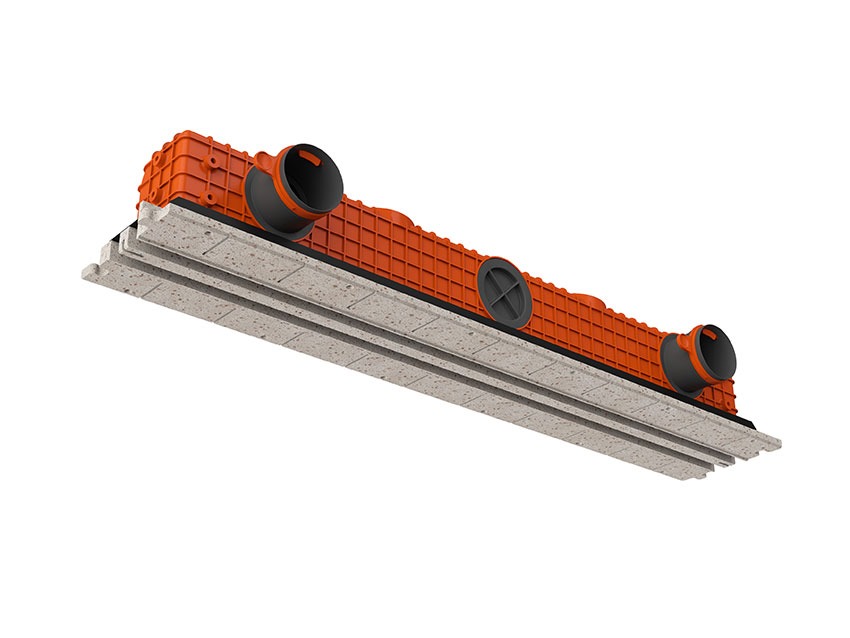

Frameless two-slot linear diffuser that mounts directly onto gypsum ceiling profiles. Unlike single-slot models, the two-slot design remains subtly visible after plastering and painting, adding a clean architectural detail to modern interiors.
Key Features:
Modular puzzle-lock design connects 39.4 in (1000 mm) segments for multi-meter runs
Compatible duct diameters: 2.95 in (75 mm) and 3.54 in (90 mm), vertical or horizontal
Required space: 6.3 in (160 mm)
Max Air Volume: 47.09 - 70.63 CFM
Two-slot profile
Built-in balancing valve for airflow regulation
Quick-lock duct connections for fast, tool-free assembly
Securely packaged for safe transport






ERGOVENT LINEO
Linear Frameless Gypsum Diffuser


LINEO PRO PUZZLE 2 SLOT
2.95" / 3.54"
Frameless two-slot linear diffuser that mounts directly onto gypsum ceiling profiles. Unlike single-slot models, the two-slot design remains subtly visible after plastering and painting, adding a clean architectural detail to modern interiors.
Key Features:
Application: air supply and extraction
Modular puzzle-lock design connects 39.4 in (1000 mm) segments for multi-meter runs
Compatible duct diameters: 2.95 in (75 mm) and 3.54 in (90 mm), vertical or horizontal
Required space: 6.3 in (160 mm)
Max Air Volume: 47.09 - 70.63 CFM
Two-slot profile, visible after installation as a refined surface detail
Built-in balancing valve for airflow regulation

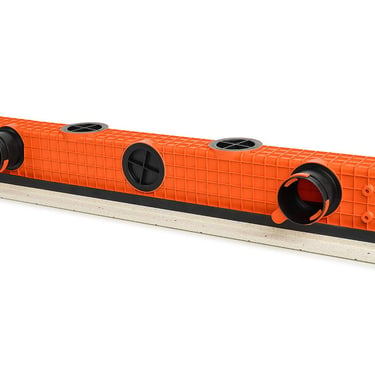

Quick-lock duct connections for fast, tool-free assembly
Securely packaged for safe transport
Key Benefits:

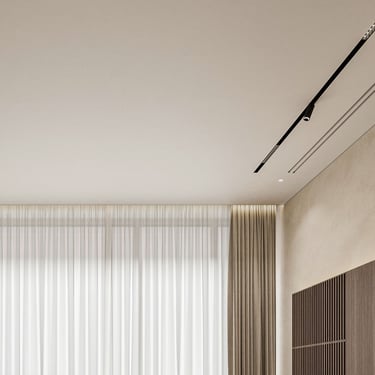

Painted to match the ceiling or wall after installation, leaving only the two-slot profile visible

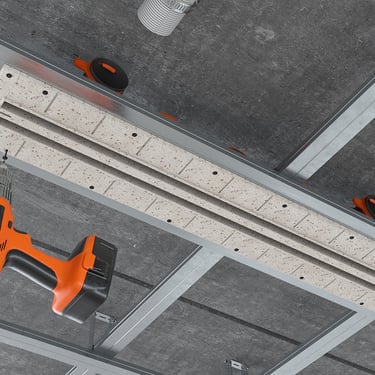

Puzzle-lock system enables long continuous runs, installable by one person
Suitable for vertical and horizontal installation without modification

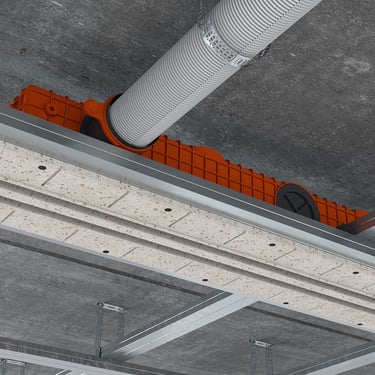

Quick-lock duct system connects flexible ducts fast and securely

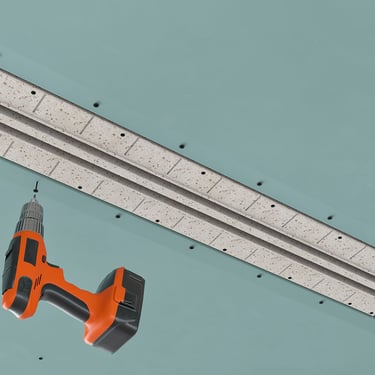

Base made from recycled material with gypsum-like expansion properties, bonding directly with drywall
Drywall, ceiling profiles, and diffuser move as one unit, eliminating the risk of filler cracking
